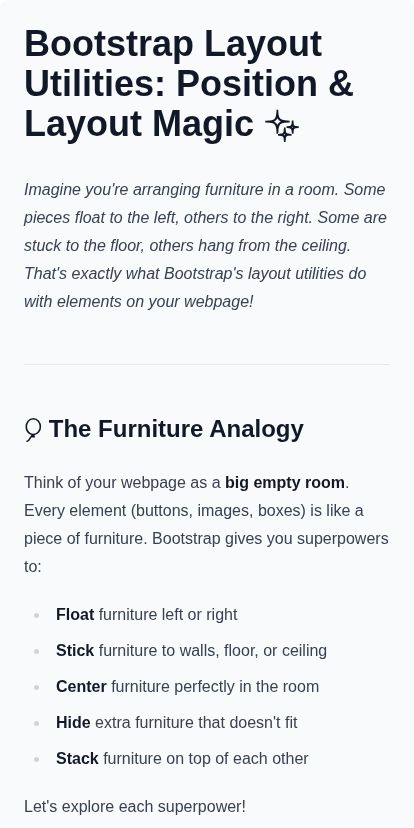

Bootstrap Layout Utilities: Position & Layout Magic ✨

Imagine you’re arranging furniture in a room. Some pieces float to the left, others to the right. Some are stuck to the floor, others hang from the ceiling. That’s exactly what Bootstrap’s layout utilities do with elements on your webpage!

🎈 The Furniture Analogy

Think of your webpage as a big empty room. Every element (buttons, images, boxes) is like a piece of furniture. Bootstrap gives you superpowers to:

• Float furniture left or right
• Stick furniture to walls, floor, or ceiling
• Center furniture perfectly in the room
• Hide extra furniture that doesn’t fit
• Stack furniture on top of each other

Let’s explore each superpower!

🌊 Float Utilities

What is Float?

Floating is like pushing a toy boat to one side of a bathtub. The boat moves to that side, and water flows around it!

<div class="float-start">
  I float to the LEFT!
</div>

<div class="float-end">
  I float to the RIGHT!
</div>

<div class="float-none">
  I don't float at all!
</div>

Float Classes

Responsive Floats

You can change float based on screen size!

<!-- Float right only on medium screens -->
<div class="float-md-end">
  I float right on tablets!
</div>

Breakpoint Classes:

• float-sm-start → Small screens
• float-md-end → Medium screens
• float-lg-none → Large screens
• float-xl-start → Extra large
• float-xxl-end → Extra extra large

📍 Position Utilities

What is Position?

Position tells an element HOW it should sit in the room. Is it glued to the floor? Can it move freely? Is it stuck to the window?

<div class="position-static">
  Normal position (default)
</div>

<div class="position-relative">
  Relative to where I normally sit
</div>

<div class="position-absolute">
  I can go ANYWHERE in my container!
</div>

<div class="position-fixed">
  I'm stuck to the screen!
</div>

<div class="position-sticky">
  I stick when you scroll past me!
</div>

Position Classes Explained

graph TD
    A["Position Types"] --> B["static"]
    A --> C["relative"]
    A --> D["absolute"]
    A --> E["fixed"]
    A --> F["sticky"]

    B --> B1["Normal flow"]
    C --> C1["Can nudge from normal spot"]
    D --> D1["Flies anywhere in container"]
    E --> E1["Glued to screen"]
    F --> F1["Sticks on scroll"]

🎯 Position Values

Where Exactly?

Once you set position, you need to say WHERE. Bootstrap gives you helper classes!

<div class="position-absolute top-0 start-0">
  TOP-LEFT corner!
</div>

<div class="position-absolute top-0 end-0">
  TOP-RIGHT corner!
</div>

<div class="position-absolute bottom-0 start-0">
  BOTTOM-LEFT corner!
</div>

<div class="position-absolute bottom-0 end-0">
  BOTTOM-RIGHT corner!
</div>

The Position Grid

Imagine your container has invisible lines at 0%, 50%, and 100%:

top-0     → 0% from top
top-50    → 50% from top (middle)
top-100   → 100% from top (bottom)

start-0   → 0% from left
start-50  → 50% from left (center)
start-100 → 100% from left (right edge)

bottom-0  → 0% from bottom
end-0     → 0% from right

Visual Map

┌─────────────────────────────┐
│ top-0        top-0          │
│ start-0      end-0          │
│                             │
│      top-50 start-50        │
│       (CENTER)              │
│                             │
│ bottom-0     bottom-0       │
│ start-0      end-0          │
└─────────────────────────────┘

🎪 Translate Middle

The Centering Problem

Even if you put something at top-50 start-50, it won’t be perfectly centered. Why? Because it positions the TOP-LEFT corner at the center!

The Solution: translate-middle

<!-- PERFECT CENTER! -->
<div class="position-absolute
            top-50 start-50
            translate-middle">
  I'm perfectly centered!
</div>

translate-middle shifts the element back by 50% of its OWN size. Magic!

Translate Variations

<!-- Center horizontally only -->
<div class="position-absolute
            start-50
            translate-middle-x">
  Centered left-right!
</div>

<!-- Center vertically only -->
<div class="position-absolute
            top-50
            translate-middle-y">
  Centered up-down!
</div>

Common Pattern: Notification Badge

<button class="btn btn-primary
               position-relative">
  Messages
  <span class="position-absolute
               top-0 start-100
               translate-middle
               badge bg-danger">
    5
  </span>
</button>

This puts a little red “5” badge on the corner of the button!

🌊 Overflow Utilities

What is Overflow?

Imagine pouring too much water in a glass. What happens to the extra water? That’s overflow!

When content is bigger than its container, Bootstrap lets you decide what happens.

<div class="overflow-auto">
  Shows scrollbars when needed
</div>

<div class="overflow-hidden">
  Cuts off extra content!
</div>

<div class="overflow-visible">
  Extra content spills out
</div>

<div class="overflow-scroll">
  Always shows scrollbars
</div>

Overflow Classes

Direction-Specific Overflow

Control X (horizontal) and Y (vertical) separately!

<div class="overflow-x-auto
            overflow-y-hidden">
  Scroll left-right, but not up-down!
</div>

Available Classes:

• overflow-x-auto / overflow-y-auto
• overflow-x-hidden / overflow-y-hidden
• overflow-x-visible / overflow-y-visible
• overflow-x-scroll / overflow-y-scroll

🏗️ Z-Index Utilities

What is Z-Index?

Imagine stacking papers on a desk. The paper on TOP covers the papers below. Z-index decides which element is on TOP!

<div class="z-0">Layer 0 (bottom)</div>
<div class="z-1">Layer 1</div>
<div class="z-2">Layer 2</div>
<div class="z-3">Layer 3 (top)</div>

The Layer Cake

graph TD
    subgraph Stack
        A["z-3 - On Top!"]
        B["z-2"]
        C["z-1"]
        D["z-0 - At Bottom"]
    end

Z-Index Classes

Real Example: Overlapping Cards

<div class="position-relative">
  <div class="position-absolute
              z-1"
       style="left: 0">
    Card 1
  </div>
  <div class="position-absolute
              z-2"
       style="left: 20px">
    Card 2 (overlaps Card 1!)
  </div>
  <div class="position-absolute
              z-3"
       style="left: 40px">
    Card 3 (on top of all!)
  </div>
</div>

🎨 Putting It All Together

Example: Fixed Header

<header class="position-fixed
               top-0 start-0
               w-100 z-3">
  I stay at the top when you scroll!
</header>

Example: Centered Modal

<div class="position-fixed
            top-50 start-50
            translate-middle
            z-3">
  I'm a centered popup!
</div>

Example: Image with Badge

<div class="position-relative
            d-inline-block">
  <img src="user.jpg"
       class="rounded-circle">
  <span class="position-absolute
               bottom-0 end-0
               translate-middle
               p-2 bg-success
               rounded-circle">
  </span>
</div>

This creates a profile picture with a green “online” dot!

🧠 Quick Summary

🎉 You Did It!

You now understand Bootstrap’s layout superpowers! Remember:

1. Float = Push left or right
2. Position = How it sits
3. Position Values = Where exactly
4. Translate Middle = Perfect center
5. Overflow = What if it doesn’t fit?
6. Z-Index = Who’s on top?

Go build amazing layouts! 🚀
