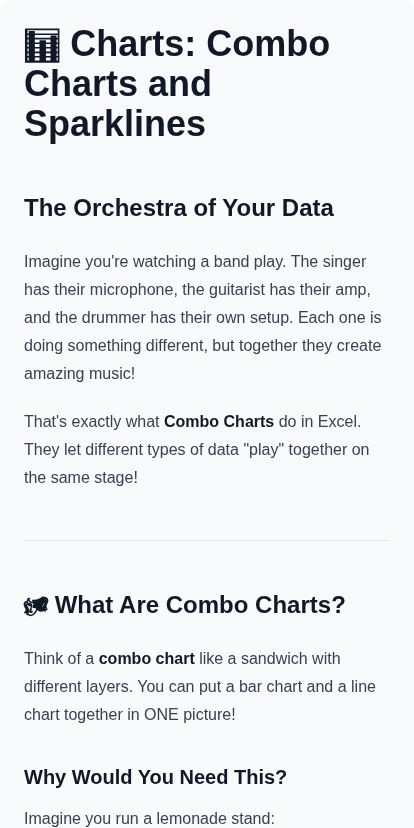

📊 Charts: Combo Charts and Sparklines
The Orchestra of Your Data
Imagine you’re watching a band play. The singer has their microphone, the guitarist has their amp, and the drummer has their own setup. Each one is doing something different, but together they create amazing music!
That’s exactly what Combo Charts do in Excel. They let different types of data “play” together on the same stage!
🎭 What Are Combo Charts?
Think of a combo chart like a sandwich with different layers. You can put a bar chart and a line chart together in ONE picture!
Why Would You Need This?
Imagine you run a lemonade stand:
- You want to show how many cups you sold (big numbers like 50, 100, 200)
- AND show your profit per cup (small numbers like $0.50, $1.00)
If you try to show both on the same regular chart, the small numbers become invisible! They’re like ants next to elephants.
Combo charts solve this problem!
Real Example
| Month | Cups Sold | Profit per Cup |
|---|---|---|
| Jan | 100 | $0.50 |
| Feb | 150 | $0.75 |
| Mar | 200 | $1.00 |
A combo chart shows:
- Bars for cups sold (left side)
- Line for profit per cup (right side)
Both are visible and clear!
🎢 The Secondary Axis - Your Chart’s Secret Superpower
What Is a Secondary Axis?
Remember our lemonade stand? The secondary axis is like having TWO rulers instead of one.
- Left ruler (Primary Axis): Measures big things (0 to 200 cups)
- Right ruler (Secondary Axis): Measures small things ($0 to $1.00)
The Two-Ruler Trick
Think of it like this:
- You have a tall friend (6 feet) and a tiny hamster (6 inches)
- If you use ONE ruler that goes 0-6 feet, the hamster is barely visible
- But if you add a SECOND ruler (0-12 inches), now you can see both clearly!
How to Add a Secondary Axis
- Click on your chart
- Select the data series you want on the right side
- Right-click → “Format Data Series”
- Choose “Secondary Axis”
graph TD A["Select Your Data Series"] --> B["Right-Click"] B --> C["Format Data Series"] C --> D["Choose Secondary Axis"] D --> E["Now You Have Two Scales!"]
When to Use Secondary Axis
✅ Use it when:
- Numbers are very different sizes
- You’re comparing related but different things
- Example: Temperature (°F) vs. Ice Cream Sales ($)
❌ Don’t use it when:
- Numbers are similar sizes
- You’re comparing the same type of thing
- Example: Sales in January vs. February
✨ Sparklines - Tiny Charts with Big Stories
What Are Sparklines?
Imagine shrinking a whole chart into the size of a single cell. That’s a sparkline!
They’re like mini-graphs that fit right inside your data table. Super small, super powerful!
The Three Types of Sparklines
1. 📈 Line Sparklines
Shows trends - is your data going up or down?
Like drawing a squiggly line showing your grades over the school year!
2. 📊 Column Sparklines
Shows individual values as tiny bars.
Like a mini bar chart living inside a cell!
3. 📉 Win/Loss Sparklines
Shows only two things: above zero (win) or below zero (loss).
Perfect for: Did I gain or lose money each month?
Creating Sparklines
Step-by-Step:
- Click the cell where you want the sparkline
- Go to Insert → Sparklines
- Choose your type (Line, Column, or Win/Loss)
- Select your data range
- Click OK!
graph TD A["Click Target Cell"] --> B["Insert Tab"] B --> C["Choose Sparkline Type"] C --> D["Select Data Range"] D --> E["Tiny Chart Appears!"]
Real-World Sparkline Example
| Product | Jan | Feb | Mar | Apr | Trend |
|---|---|---|---|---|---|
| Apples | 50 | 60 | 55 | 80 | 📈 |
| Bananas | 30 | 25 | 20 | 15 | 📉 |
The “Trend” column could have sparklines showing the pattern at a glance!
🛠️ Putting It All Together
When to Use Each Tool
| Situation | Best Choice |
|---|---|
| Comparing sales AND profit margins | Combo Chart |
| Need two different scales | Secondary Axis |
| Quick trend overview in a table | Sparklines |
| Dashboard with limited space | Sparklines |
Pro Tips
🌟 Sparkline Tip: You can customize colors! Make high points green and low points red.
🌟 Combo Chart Tip: Use different chart types that make sense together:
- Bars + Lines = Great!
- Pie + Lines = Confusing!
🌟 Secondary Axis Tip: Always label both axes clearly so viewers know which scale goes with which data.
🎯 Quick Summary
- Combo Charts = Multiple chart types in one picture
- Secondary Axis = Two different rulers for different-sized data
- Sparklines = Tiny charts inside cells for quick trends
You now have the tools to make your data tell a complete story! Like a conductor leading an orchestra, you can mix different elements to create something beautiful and clear.
🚀 You Did It!
You’ve just learned how to:
- Combine different chart types like a pro
- Use two axes when your numbers are different sizes
- Create tiny but powerful sparklines
Your Excel charts will never be boring again! Go forth and visualize your data like the champion you are! 🏆
