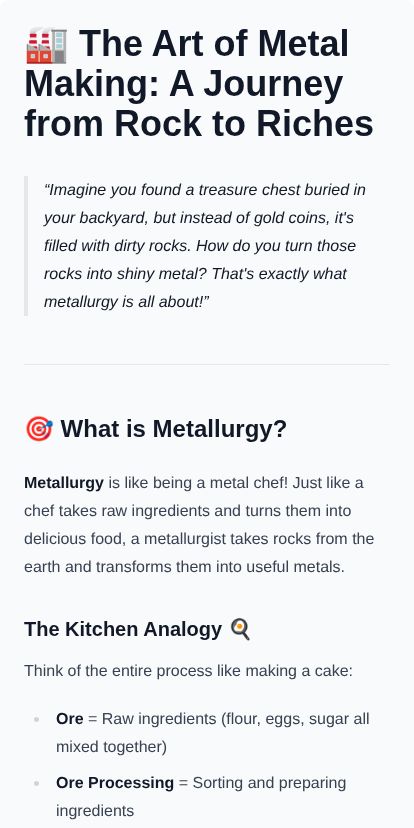

🏭 The Art of Metal Making: A Journey from Rock to Riches
Imagine you found a treasure chest buried in your backyard, but instead of gold coins, it’s filled with dirty rocks. How do you turn those rocks into shiny metal? That’s exactly what metallurgy is all about!
🎯 What is Metallurgy?
Metallurgy is like being a metal chef! Just like a chef takes raw ingredients and turns them into delicious food, a metallurgist takes rocks from the earth and transforms them into useful metals.
The Kitchen Analogy 🍳
Think of the entire process like making a cake:
- Ore = Raw ingredients (flour, eggs, sugar all mixed together)
- Ore Processing = Sorting and preparing ingredients
- Extraction = Baking the cake (the transformation!)
- Refining = Decorating and perfecting the final cake
📦 What is an Ore?
An ore is a special rock that contains enough metal to make it worth extracting. Not all rocks with metal are ores!
Simple Test 🤔
If the cost of getting metal OUT is less than what the metal is WORTH, it’s an ore!
Examples:
| Metal | Ore Name | What it looks like |
|---|---|---|
| Iron | Hematite | Reddish-brown rock |
| Copper | Chalcopyrite | Golden-yellow crystals |
| Aluminum | Bauxite | Reddish clay-like |
| Zinc | Zinc blende | Shiny dark crystals |
⚙️ Step 1: Ore Processing (Cleaning Up!)
Before we can get the metal, we need to clean up the ore. This is called concentration or beneficiation.
Why Clean First?
Imagine trying to find your favorite toy in a messy room full of other stuff. It’s easier if you first throw away the garbage, right?
The “garbage” in ores is called gangue (pronounced “gang”) - it’s the useless rocky material surrounding the metal.
Methods of Ore Processing
1. 🔨 Crushing & Grinding
Break big rocks into tiny pieces (like crushing cookies!)
2. 🧲 Magnetic Separation
For magnetic ores like iron
Think of it like this:
🧲 Magnet pulls iron → ✅ Keep!
🧲 Magnet ignores sand → ❌ Throw away!
Example: Magnetite (iron ore) sticks to magnets, sand doesn’t!
3. 🫧 Froth Flotation
The bubble bath for ores!
This is the coolest method! Some minerals are “hydrophobic” (water-hating) and others are “hydrophilic” (water-loving).
graph TD A["Crushed Ore + Water"] --> B["Add Oil & Blow Air"] B --> C["Metal sticks to bubbles"] C --> D["Bubbles rise to top"] D --> E["Scoop off metal-rich froth!"] B --> F["Gangue sinks to bottom"] F --> G["Discard waste"]
Real Example: Copper and zinc ores are separated this way!
4. 💧 Gravity Separation
Heavy things sink, light things float!
Like panning for gold - shake the mixture in water, and heavy gold settles at the bottom while lighter sand washes away.
5. ⚡ Leaching
Dissolving the good stuff out
Pour a special liquid over the ore that dissolves only the metal you want. Like making tea - hot water extracts flavor from tea leaves!
Example: Gold is extracted using cyanide solution (carefully handled by experts!)
🔥 Step 2: Metal Extraction (The Magic Transformation!)
Now comes the exciting part - turning metal compounds into pure metal!
The Big Idea: Reduction
Most metals in ores are combined with oxygen or sulfur. To get pure metal, we need to remove these elements. This is called reduction.
Remember: Reduction = Removing oxygen (or gaining electrons)
Three Main Methods
Method 1: 🔥 Smelting (Using Heat + Carbon)
This is the oldest and most common method!
How it works:
- Mix ore with carbon (coal or coke)
- Heat it up REALLY hot
- Carbon “steals” oxygen from the metal
- Pure metal is left behind!
graph TD A["Metal Oxide + Carbon"] --> B["Heat in Furnace"] B --> C["Carbon + Oxygen → CO₂ ↑"] B --> D["Pure Metal melts down"] C --> E["Gas escapes"] D --> F["Collect liquid metal!"]
The Chemical Story:
Iron Oxide + Carbon → Iron + Carbon Dioxide
2Fe₂O₃ + 3C → 4Fe + 3CO₂
Carbon is the hero that saves metals from oxygen!
Used for: Iron, Zinc, Lead, Tin
Method 2: ⚡ Electrolysis (Using Electricity)
For metals that REALLY love oxygen (like aluminum), carbon isn’t strong enough. We need electricity!
How it works:
- Melt the ore (or dissolve it)
- Pass electric current through
- Metal atoms get pulled to one electrode
- Pure metal collects!
Example - Aluminum (Hall-Héroult Process):
Bauxite → Alumina (Al₂O₃) → Electrolysis → Aluminum!
This is why aluminum was once more expensive than gold - electricity was rare!
Used for: Aluminum, Sodium, Magnesium, Potassium
Method 3: 🧪 Hydrometallurgy (Using Liquids)
Dissolve the metal, then recover it from the solution.
Steps:
- Leach - Dissolve metal in acid or other solution
- Purify - Clean up the solution
- Recover - Get metal out (often by electrolysis)
Used for: Gold, Copper, Uranium
✨ Step 3: Metal Refining (Making it Perfect!)
The metal we extract isn’t 100% pure. Refining removes the last impurities.
Why Refine?
Imagine you baked a cake but some eggshell pieces fell in. The cake is “done” but not perfect. Refining removes those “eggshell pieces” from metals!
Refining Methods
1. ⚡ Electrolytic Refining
The gold standard for purity!
graph TD A["Impure Metal Anode"] --> B["Electric Current"] B --> C["Metal dissolves into solution"] C --> D["Pure metal deposits on cathode"] A --> E["Impurities fall as mud"]
How it works:
- Impure metal = Anode (positive)
- Pure metal sheet = Cathode (negative)
- Metal ions travel through solution
- Only pure metal sticks to cathode!
Purity achieved: 99.99%!
Used for: Copper, Gold, Silver
2. 🔥 Zone Refining
For ultra-pure metals (semiconductors)
Pass a heating coil slowly along a metal bar. Impurities concentrate in the melted zone and move to one end. Cut off that end!
Used for: Silicon, Germanium (for computer chips!)
3. 💨 Distillation
For metals that vaporize easily
Heat metal until it becomes gas, then cool it to get pure solid.
Used for: Zinc, Mercury
4. 🧪 Liquation
For low-melting metals
Heat just enough to melt the metal but not impurities. Metal flows away, impurities stay behind.
Used for: Tin, Lead
📊 The Ellingham Diagram: The Metal Cheat Sheet!
This is the most powerful tool in metallurgy! It tells you exactly how to extract any metal.
What Does it Show?
The Ellingham diagram shows how “angry” different metals are about being with oxygen (their stability as oxides).
graph TD A["Top of Diagram"] --> B["Weak Oxides - Easy to reduce"] B --> C["Examples: Mercury, Silver"] C --> D["Middle of Diagram"] D --> E["Medium strength - Use carbon"] E --> F["Examples: Iron, Zinc, Lead"] F --> G["Bottom of Diagram"] G --> H["Strong Oxides - Need electricity!"] H --> I["Examples: Aluminum, Magnesium"]
The Golden Rule 🌟
A substance LOWER on the diagram can reduce a substance HIGHER on the diagram!
Reading the Diagram
| Position | Metal Examples | How to Extract |
|---|---|---|
| Top | Ag, Hg, Au | Just heat! |
| Middle | Fe, Zn, Pb, Cu | Carbon/CO reduction |
| Bottom | Al, Mg, Ca | Electrolysis only |
Why Carbon is a Superstar ⭐
Carbon’s line on the Ellingham diagram goes down as temperature increases (opposite of metals!). This means:
- At low temps: Carbon is weak
- At high temps: Carbon becomes SUPER powerful!
Around 1000°C, carbon can reduce iron oxide. That’s why we use blast furnaces!
Special Points on the Diagram
1. The Carbon-CO Line Crosses Metal Lines Where they cross = temperature needed for reduction!
2. The Kink Points Sharp bends show phase changes (solid → liquid → gas)
🏭 Real-World Example: Making Iron (Blast Furnace)
Let’s see everything come together!
The Journey of Iron
graph TD A["Iron Ore - Hematite"] --> B["Crush & Screen"] B --> C["Mix with Coke & Limestone"] C --> D["Feed into Blast Furnace"] D --> E["Hot air blown in from bottom"] E --> F["Temperature: 1500-2000°C"] F --> G["Carbon reduces iron oxide"] G --> H["Liquid iron collects at bottom"] H --> I["Slag floats on top - removed"] I --> J["Pig Iron - Ready for steel making!"]
What Happens Inside?
Zone by Zone:
- Top: Ore enters, gases exit
- Middle: Reduction begins
Fe₂O₃ + 3CO → 2Fe + 3CO₂ - Bottom: Hottest zone
- Carbon burns: C + O₂ → CO₂
- CO₂ reacts: CO₂ + C → 2CO
- Hearth: Liquid iron and slag collect
The Role of Limestone
Limestone (CaCO�ite) isn’t just there for fun!
CaCO₃ → Caite + CO₂ (breaks down)
CaO + SiO₂ → CaSiO₃ (slag formation)
Slag removes impurities like silicon and makes the process smoother!
🎯 Quick Summary: The Metallurgy Flow
graph TD A["🪨 Mining - Get ore from Earth"] --> B["⚙️ Processing - Remove gangue"] B --> C["🔥 Extraction - Get crude metal"] C --> D["✨ Refining - Purify to perfection"] D --> E["🏭 Final Product - Ready to use!"]
Method Selection Guide
| Metal Reactivity | Examples | Best Extraction Method |
|---|---|---|
| Low | Au, Ag, Hg | Heating alone |
| Medium | Fe, Zn, Pb, Cu | Carbon reduction |
| High | Al, Mg, Na, K | Electrolysis |
💡 Fun Facts!
🌟 Aluminum used to cost more than gold because electrolysis wasn’t invented yet!
🌟 The Bronze Age happened before the Iron Age because bronze (copper + tin) has a lower melting point and is easier to make!
🌟 Zone refining can make silicon 99.9999999% pure - that’s nine 9s!
🌟 Ancient people discovered iron from meteorites before learning to extract it from ore!
🧠 Remember This!
- Ore = Rock worth mining for metal
- Gangue = Useless stuff around the metal
- Concentration = Removing gangue (flotation, magnetic, gravity)
- Extraction = Getting metal out (smelting, electrolysis)
- Refining = Making it pure (electrolytic, zone, distillation)
- Ellingham Diagram = Your cheat sheet for choosing extraction methods!
You’ve just learned how humans transform humble rocks into the metals that build our world! From the iron in your bicycle to the aluminum in your phone, it all starts with metallurgy. Pretty cool, right? 🌟
