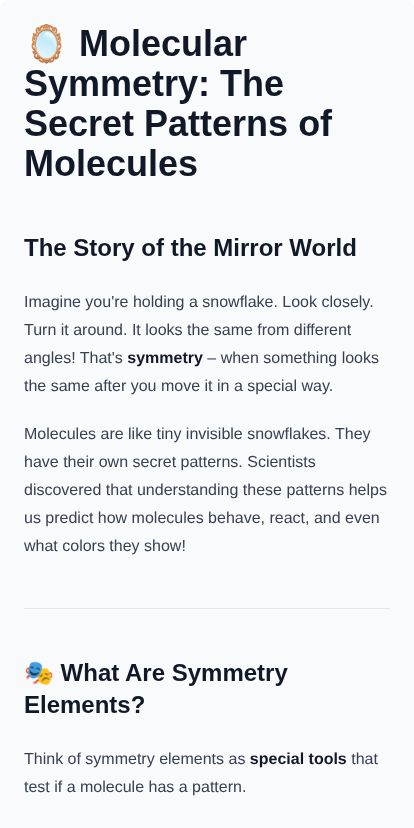

🪞 Molecular Symmetry: The Secret Patterns of Molecules

The Story of the Mirror World

Imagine you’re holding a snowflake. Look closely. Turn it around. It looks the same from different angles! That’s symmetry – when something looks the same after you move it in a special way.

Molecules are like tiny invisible snowflakes. They have their own secret patterns. Scientists discovered that understanding these patterns helps us predict how molecules behave, react, and even what colors they show!

🎭 What Are Symmetry Elements?

Think of symmetry elements as special tools that test if a molecule has a pattern.

Imagine you have a toy and a magic test:

• If the toy looks exactly the same after you use the magic test, the toy has that symmetry!
• If it looks different, it doesn’t have that symmetry.

The 5 Magic Tests (Symmetry Elements)

graph TD
    A["🔮 Symmetry Elements"] --> B["🪞 Mirror Plane σ"]
    A --> C["🔄 Rotation Axis Cn"]
    A --> D["⭕ Inversion Center i"]
    A --> E["🌀 Improper Axis Sn"]
    A --> F["🆔 Identity E"]

🪞 1. Mirror Plane (σ)

The Reflection Test

Hold up a mirror next to your face. Your reflection looks like you but flipped!

A mirror plane (called sigma, written as σ) is an imaginary flat surface through a molecule. If you could put a mirror there and the molecule looks exactly the same, it has a mirror plane!

Real Example: Water (H₂O)

Picture water as a Mickey Mouse face:

• Oxygen = the face
• Two hydrogens = the ears

Water has 2 mirror planes:

• One cuts through the oxygen and between both hydrogens
• One cuts through all three atoms (like slicing Mickey’s face in half)

Types of Mirror Planes

🔄 2. Rotation Axis (Cn)

The Spinning Test

Imagine a pinwheel. When you spin it, it looks the same multiple times before completing one full turn!

A rotation axis is an imaginary line. You spin the molecule around this line by a certain angle. If it looks identical, it has that rotation symmetry!

The Magic Formula

C followed by a number n means:

“Spin by 360°/n and it looks the same”

Real Example: Ammonia (NH₃)

Picture ammonia as a tripod:

• Nitrogen at the top
• Three hydrogens as the legs

If you spin it by 120° around the nitrogen, it looks the same! That’s a C₃ axis.

The Principal Axis

When a molecule has multiple rotation axes, the one with the highest n is the principal axis. It’s like the main highway of the molecule!

⭕ 3. Center of Inversion (i)

The Inside-Out Test

Imagine you’re standing in the center of a room. Everything you see in front of you also exists behind you, at the same distance, like a 3D mirror effect!

A center of inversion is a single point inside the molecule. For every atom, there’s an identical atom exactly opposite, at the same distance from the center.

Real Example: Sulfur Hexafluoride (SF₆)

Picture a sulfur atom with 6 fluorines around it, like points of an octahedron:

• Top F has a partner at the bottom
• Left F has a partner on the right
• Front F has a partner at the back

All partners are equal distance from sulfur. SF₆ has an inversion center!

Non-Example: Water

Water does NOT have an inversion center. If you try to go through the oxygen to the other side, you don’t find identical atoms in matching positions.

🌀 4. Improper Rotation Axis (Sn)

The Twist-and-Flip Test

This is a combo move! It’s like doing two magic tricks at once:

1. First: Rotate by 360°/n (like a Cn)
2. Then: Reflect through a mirror plane perpendicular to the axis

The molecule must look the same after BOTH steps together (not after each step separately).

Real Example: Methane (CH₄)

Methane looks like a pyramid with 4 faces (tetrahedron):

• Carbon in the center
• 4 hydrogens at the corners

Methane has an S₄ axis. When you:

1. Rotate 90° around an axis through carbon
2. Then reflect through a plane

It looks identical! But note: methane does NOT have a simple C₄ axis. This combo is special!

Special Cases

🆔 5. Identity (E)

The “Do Nothing” Test

This sounds silly, but it’s important! The identity element means “do nothing at all.”

Every molecule has E. It’s like asking: “Does this molecule look like itself?” Of course, yes!

Why include it? Because in math and group theory, we need a “do nothing” option to make the rules work properly. It’s like how zero is important in math even though adding zero doesn’t change anything.

🏷️ Point Groups: Molecule Families

Now comes the exciting part! Scientists realized that molecules with the same combination of symmetry elements belong to the same family. These families are called point groups.

Why “Point”?

All the symmetry elements pass through one point that doesn’t move. The molecule rotates and reflects around this central point.

graph TD
    A["❓ Does it have symmetry?"] -->|Special shape?| B{Check Special Groups}
    A -->|Normal molecule| C{Has Cn axis?}

    B -->|Linear| D["C∞v or D∞h"]
    B -->|Cubic| E["Td, Oh, or Ih"]

    C -->|No| F["C1, Cs, or Ci"]
    C -->|Yes| G{Has n⊥C2?}

    G -->|Yes| H["D groups"]
    G -->|No| I["C groups"]

    H -->|Has σh?| J["Dnh"]
    H -->|Has σd?| K["Dnd"]
    H -->|Neither| L["Dn"]

    I -->|Has σh?| M["Cnh"]
    I -->|Has σv?| N["Cnv"]
    I -->|Has Sn?| O["Sn"]
    I -->|Nothing else| P["Cn"]

📦 The Main Point Group Families

Low Symmetry Groups

Cn Groups (Single Rotation Axis)

Dn Groups (Multiple C₂ Axes)

Special High Symmetry Groups

🔍 How to Find a Point Group (Step by Step)

Step 1: Check for Special Shapes

• Is it linear? → C∞v or D∞h
• Is it a tetrahedron? → Td
• Is it an octahedron? → Oh

Step 2: Find the Principal Axis

Look for the highest Cn. This is your main reference.

Step 3: Check for Perpendicular C₂ Axes

Are there C₂ axes perpendicular to your principal axis?

• Yes → You’re in a D family
• No → You’re in a C family

Step 4: Check for Mirror Planes

For D families:

• σh present? → Dnh
• σd present (but no σh)? → Dnd
• No mirrors? → Dn

For C families:

• σh present? → Cnh
• σv present? → Cnv
• Neither? → Cn

🎯 Practice: Water (H₂O)

Let’s find water’s point group together!

1. Special shape? No, not linear or cubic
2. Principal axis? C₂ (through O, between H’s)
3. Perpendicular C₂? No
4. Mirror planes? Yes! σv mirrors (2 of them)

Answer: C₂v ✓

🎯 Practice: Benzene (C₆H₆)

Benzene is a flat hexagon ring.

1. Special shape? No
2. Principal axis? C₆ (perpendicular to the ring)
3. Perpendicular C₂? Yes! Six of them!
4. σh? Yes (the plane of the ring itself)

Answer: D₆h ✓

💡 Why Does This Matter?

Understanding point groups lets scientists:

1. Predict if molecules are polar – only certain groups can be
2. Know if molecules are chiral – can they be non-superimposable on their mirror image?
3. Predict spectroscopy – which light absorptions are “allowed”
4. Simplify quantum calculations – group theory reduces complex math

🌟 Quick Memory Tips

• E = Everyone has it (do nothing)
• σ = sigma = surface (mirror plane)
• C = circular rotation
• i = inversion (inside-out through a point)
• S = super combo (rotate + reflect)

The Subscript Numbers

• n in Cn = how many times same in 360°
• h = horizontal plane
• v = vertical plane
• d = diagonal/dihedral plane

🎉 You Did It!

You now understand the secret language of molecular symmetry! Every molecule has its own fingerprint of symmetry elements, and its point group is like its family name.

Next time you see a molecule, try to spot its mirrors, its rotation axes, and guess its point group. You’re now thinking like a chemist! 🧪✨
