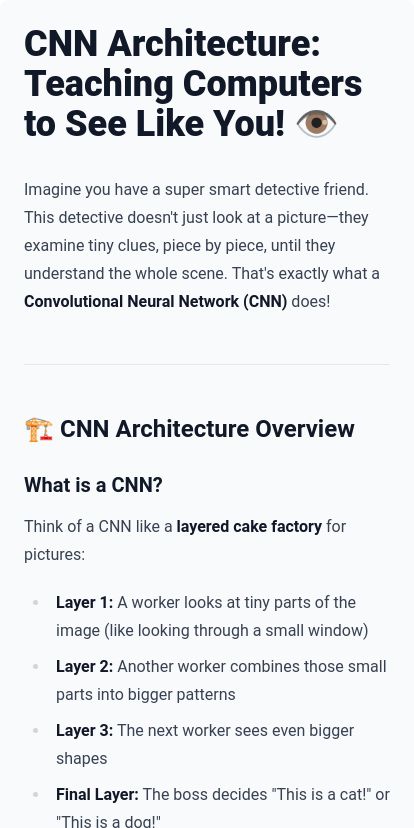

CNN Architecture: Teaching Computers to See Like You! 👁️
Imagine you have a super smart detective friend. This detective doesn’t just look at a picture—they examine tiny clues, piece by piece, until they understand the whole scene. That’s exactly what a Convolutional Neural Network (CNN) does!
🏗️ CNN Architecture Overview
What is a CNN?
Think of a CNN like a layered cake factory for pictures:
- Layer 1: A worker looks at tiny parts of the image (like looking through a small window)
- Layer 2: Another worker combines those small parts into bigger patterns
- Layer 3: The next worker sees even bigger shapes
- Final Layer: The boss decides “This is a cat!” or “This is a dog!”
Simple Example: When you look at a friend’s face, you don’t process the whole face at once. You notice:
- Eyes here
- Nose there
- Smile below
Your brain combines these parts to recognize your friend. CNNs work the same way!
graph TD A["📷 Input Image"] --> B["🔍 Convolution Layers"] B --> C["📉 Pooling Layers"] C --> D["🔄 More Conv + Pool"] D --> E["🧠 Fully Connected"] E --> F["✅ Output: Cat/Dog/etc"]
Why CNNs Are Special
Regular neural networks look at every pixel separately—that’s like trying to understand a book by looking at each letter individually!
CNNs are smarter. They look at groups of pixels together, just like you read words, not letters.
🔍 Convolution Operation
The Magic Sliding Window
Imagine you have a magnifying glass that you slide over a photo. At each spot, you look closely and take notes about what you see.
That’s convolution! You have a small “window” (called a kernel or filter) that slides across the image.
Real-Life Example: Think of pressing a cookie cutter onto dough. You press it here, then slide it over and press again. Each time, you check: “Does this part of the dough match my shape?”
How It Works
Original Image (5x5): Filter (3x3):
1 2 3 4 5 1 0 1
6 7 8 9 10 0 1 0
11 12 13 14 15 1 0 1
16 17 18 19 20
21 22 23 24 25
The filter slides over the image. At each position:
- Multiply matching numbers together
- Add up all the results
- Write that number in your new, smaller image
Result: A new image that highlights certain patterns!
Why This Matters
- Edge detector: One filter can find edges
- Blur detector: Another filter can smooth things
- Pattern finder: Different filters find different things
It’s like having different colored glasses—each shows you something different about the same picture!
🎨 Filters and Feature Maps
What Are Filters?
Filters are like question cards the CNN uses to examine the image:
| Filter Type | What It Asks |
|---|---|
| Edge Filter | “Are there sharp lines here?” |
| Blur Filter | “Is this area smooth?” |
| Corner Filter | “Is there a corner here?” |
Think of it like this: You’re a detective with different tools:
- 🔍 Magnifying glass finds small details
- 📐 Ruler finds straight lines
- 🧭 Compass finds curves
Each tool (filter) gives you different information!
What Are Feature Maps?
After each filter scans the whole image, you get a feature map—a new picture showing where the filter found matches.
Example:
- Run an “edge filter” over a photo of a cat
- The feature map lights up where edges exist (around eyes, ears, whiskers)
- Flat areas (like fur) stay dark
graph TD A["🖼️ Original Image"] --> B["Apply Filter 1"] A --> C["Apply Filter 2"] A --> D["Apply Filter 3"] B --> E["Feature Map 1: Edges"] C --> F["Feature Map 2: Corners"] D --> G["Feature Map 3: Textures"]
Many Filters = Deep Understanding
A CNN might use 64 different filters in the first layer alone! Each creates its own feature map. Together, they capture all the important patterns in an image.
📏 Stride and Padding
What is Stride?
Stride is how big your steps are when sliding the filter.
Analogy: Imagine hopping across a room:
- Stride 1: Take tiny steps, check every tile
- Stride 2: Skip every other tile
- Stride 3: Jump over two tiles at a time
| Stride | Effect |
|---|---|
| 1 | Very detailed, larger output |
| 2 | Less detailed, smaller output |
| 3+ | Even smaller, might miss things |
Example: With a 6x6 image and 3x3 filter:
- Stride 1 → Output: 4x4
- Stride 2 → Output: 2x2
What is Padding?
Problem: When you slide a filter, you lose pixels at the edges!
Solution: Add extra pixels (usually zeros) around the border—that’s padding!
Think of it like: Adding a frame around a painting before putting it in a bigger frame. You don’t lose the edges!
Without Padding: With Padding:
[Image shrinks] [Image keeps size]
5x5 → 3x3 5x5 → 5x5
Types of Padding
| Type | Description | Use Case |
|---|---|---|
| Valid (None) | No padding, output shrinks | When size reduction is okay |
| Same | Add enough to keep same size | When you want to preserve dimensions |
🏊 Pooling Layers
Why Pool?
After convolution, we have too much information! Pooling helps us:
- Keep the important stuff
- Throw away the extra details
- Make everything smaller and faster
Analogy: Imagine summarizing a long book into a short summary. You keep the main ideas but skip the tiny details.
Max Pooling (Most Popular)
Look at a small region and keep only the biggest number.
Before (4x4): After Max Pool (2x2):
1 3 2 4 3 4
5 6 7 8 → 6 9
2 1 9 3
4 6 2 1
Why the maximum? The biggest number represents the strongest signal—the most important feature detected!
Real-Life Example: If you’re looking for the brightest star in each section of the sky, you only remember the brightest one, not all of them.
Average Pooling
Instead of max, take the average of all numbers.
Region: 1, 3, 5, 7
Average: (1+3+5+7) ÷ 4 = 4
When to use:
- Max pooling: Finding if a feature exists anywhere
- Average pooling: Getting a general sense of a region
🏛️ Classic CNN Architectures
LeNet-5 (1998) - The Pioneer
Built by Yann LeCun to read handwritten digits (like ZIP codes).
graph TD A["Input: 32x32"] --> B["Conv"] B --> C["Pool"] C --> D["Conv"] D --> E["Pool"] E --> F["Fully Connected"] F --> G["Output: 0-9"]
Like: A simple recipe that started it all!
AlexNet (2012) - The Game Changer
Won ImageNet competition by a huge margin. Used:
- More layers
- ReLU activation
- Dropout to prevent overfitting
- GPU training
Like: The upgrade from a bicycle to a car!
VGGNet (2014) - Keep It Simple
Used only 3x3 filters everywhere. Showed that going deeper (more layers) helps!
Key Insight: Two 3x3 filters = same effect as one 5x5 filter, but with fewer calculations!
GoogLeNet/Inception (2014) - Be Creative
Asked: “Why use just one filter size?”
Solution: Use 1x1, 3x3, AND 5x5 filters at the same time!
graph TD A["Input"] --> B["1x1 Conv"] A --> C["3x3 Conv"] A --> D["5x5 Conv"] A --> E["MaxPool"] B --> F["Combine All"] C --> F D --> F E --> F
Like: Having multiple detectives work the same case with different methods!
🔗 ResNet and Skip Connections
The Problem with Going Deep
More layers = better, right? Not always!
After about 20 layers, something strange happens:
- Training gets harder
- The network actually gets WORSE
- Gradients (learning signals) fade away
Analogy: Playing telephone with 50 people. By the end, the message is completely garbled!
The Brilliant Solution: Skip Connections
ResNet’s idea: Let information SKIP over some layers!
graph TD A["Input X"] --> B["Conv Layer 1"] B --> C["Conv Layer 2"] A --> D["Skip Connection"] C --> E["Add X + Output"] D --> E E --> F["Continue..."]
Instead of learning the full answer, each block learns:
“What do I need to ADD to make this better?”
Analogy: Instead of writing a whole essay from scratch, you:
- Start with a draft (skip connection)
- Just make edits and additions (learned features)
Why This Works
- Easy to pass information: Important details don’t get lost
- Easier to learn: Adding small changes is simpler than building everything from scratch
- Can go VERY deep: ResNet uses 50, 101, even 152 layers!
ResNet Variations
| Version | Layers | Use Case |
|---|---|---|
| ResNet-18 | 18 | Fast, simple tasks |
| ResNet-50 | 50 | Good balance |
| ResNet-101 | 101 | Complex images |
| ResNet-152 | 152 | Best accuracy |
Fun Fact: ResNet-152 is like a 152-story building with elevators (skip connections) that let you jump floors!
🎯 Putting It All Together
Here’s how a modern CNN processes an image:
- 📷 Image comes in (e.g., 224x224 pixels, color)
- 🔍 Convolution layers detect edges, then shapes, then objects
- 📉 Pooling layers shrink the data while keeping important info
- 🔗 Skip connections keep information flowing smoothly
- 🧠 Fully connected layers make the final decision
- ✅ Output: “This is a golden retriever!”
The Journey:
| Layer | What It Sees |
|---|---|
| First Conv | Edges, colors |
| Middle Conv | Eyes, ears, textures |
| Deep Conv | Face shapes, body parts |
| Final | “It’s a dog!” |
🚀 You Did It!
You now understand how computers learn to “see”! CNNs are:
- Smart: They learn important patterns automatically
- Efficient: Convolution shares work across the image
- Deep: Skip connections let them go hundreds of layers deep
- Powerful: They can recognize almost anything!
What’s Next? Try the interactive simulation to see convolution in action, then test your knowledge with the quiz!
Remember: Every expert was once a beginner. You’ve just taken a huge step in understanding one of AI’s most powerful tools! 🎉
