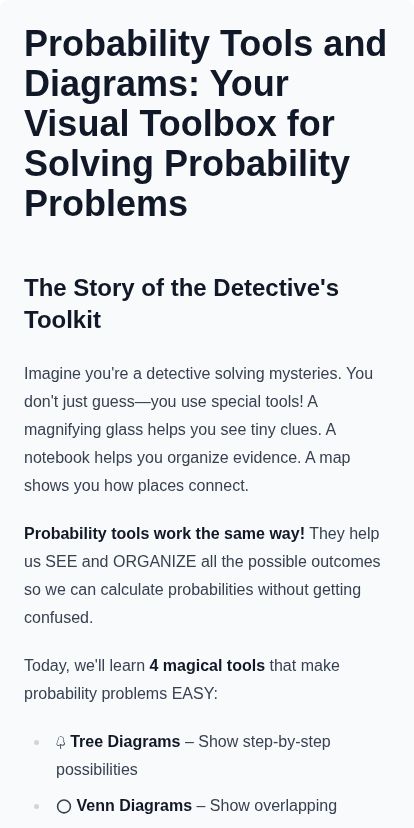

Probability Tools and Diagrams: Your Visual Toolbox for Solving Probability Problems

The Story of the Detective’s Toolkit

Imagine you’re a detective solving mysteries. You don’t just guess—you use special tools! A magnifying glass helps you see tiny clues. A notebook helps you organize evidence. A map shows you how places connect.

Probability tools work the same way! They help us SEE and ORGANIZE all the possible outcomes so we can calculate probabilities without getting confused.

Today, we’ll learn 4 magical tools that make probability problems EASY:

• 🌳 Tree Diagrams – Show step-by-step possibilities
• ⭕ Venn Diagrams – Show overlapping groups
• 📊 Two-Way Tables – Organize data in rows and columns
• 🔄 With & Without Replacement – Understand how taking things changes the next pick

🌳 Tree Diagrams: The Branching Path

What is a Tree Diagram?

Think of a tree growing upside down! The trunk is where you START, and the branches show ALL the different paths you could take.

Simple Example: Flipping a Coin Twice

When you flip a coin once, two things can happen:

• Heads (H)
• Tails (T)

When you flip it AGAIN, each of those branches splits into two more!

graph TD
    A["START"] --> B["H"]
    A --> C["T"]
    B --> D["HH"]
    B --> E["HT"]
    C --> F["TH"]
    C --> G["TT"]

Reading the Tree:

• Follow each path from START to the end
• HH = Heads, then Heads
• HT = Heads, then Tails
• TH = Tails, then Heads
• TT = Tails, then Tails

4 total outcomes! Each has a probability of 1/4.

How to Calculate Probabilities with Trees

The Golden Rule: Multiply along branches, Add across branches.

Example: Picking Socks from a Drawer

You have 3 red socks and 2 blue socks. You pick one sock, then another (without looking back).

graph TD
    A["5 socks"] --> B["Red 3/5"]
    A --> C["Blue 2/5"]
    B --> D["Red 2/4"]
    B --> E["Blue 2/4"]
    C --> F["Red 3/4"]
    C --> G["Blue 1/4"]

P(Red, then Red) = 3/5 × 2/4 = 6/20 = 3/10

Notice how the second pick changes! After taking one red, only 2 red remain out of 4 total.

Why Trees Are Amazing

✅ Show ALL possible outcomes clearly ✅ Help you multiply probabilities correctly ✅ Great for problems with STEPS or STAGES ✅ Make “without replacement” easy to see

⭕ Venn Diagrams in Probability: The Overlapping Circles

What is a Venn Diagram?

Picture two (or more) circles that can overlap. Each circle represents a GROUP of things.

The magic happens in the OVERLAP—where things belong to BOTH groups!

The Parts of a Venn Diagram

┌─────────────────────────────────────┐
│                                     │
│    ┌──────┐     ┌──────┐           │
│    │  A   │     │  B   │           │
│    │ only │  AB │ only │           │
│    │      │     │      │           │
│    └──────┘     └──────┘           │
│                                     │
│         Neither A nor B             │
└─────────────────────────────────────┘

• A only = Things in A but NOT in B
• B only = Things in B but NOT in A
• AB (overlap) = Things in BOTH A and B
• Outside = Things in NEITHER

Real Example: Students and Sports

In a class of 30 students:

• 18 play football (F)
• 12 play basketball (B)
• 8 play BOTH sports

Let’s fill in the Venn Diagram:

1. Both (overlap): 8 students
2. Football only: 18 - 8 = 10 students
3. Basketball only: 12 - 8 = 4 students
4. Neither sport: 30 - (10 + 8 + 4) = 8 students

┌─────────────────────────────────────┐
│                                     │
│    ┌──────┐     ┌──────┐           │
│    │  10  │  8  │  4   │           │
│    │  F   │ F∩B │  B   │           │
│    └──────┘     └──────┘           │
│              8 (neither)            │
│         Total: 30 students          │
└─────────────────────────────────────┘

Probability Questions with Venn Diagrams

P(plays football) = 18/30 = 3/5

P(plays BOTH sports) = 8/30 = 4/15

P(plays football OR basketball) = (10 + 8 + 4)/30 = 22/30 = 11/15

P(plays NEITHER) = 8/30 = 4/15

The OR and AND Rules

Key Formula: P(A or B) = P(A) + P(B) - P(A and B)

We subtract P(A and B) because the overlap gets counted twice!

📊 Two-Way Tables: Data in Rows and Columns

What is a Two-Way Table?

A two-way table is like a grid that shows TWO different categories at once. One category goes across the top (columns), the other goes down the side (rows).

Example: Student Pet Survey

A school surveyed 100 students about pets:

Reading the Table:

• 15 students own BOTH a cat and a dog
• 25 students own a cat but NO dog
• 35 students own a dog but NO cat
• 25 students own NEITHER

Finding Probabilities from Two-Way Tables

P(owns a dog) = 50/100 = 1/2

P(owns both) = 15/100 = 3/20

P(owns a cat but not a dog) = 25/100 = 1/4

P(owns at least one pet) = (15 + 25 + 35)/100 = 75/100 = 3/4

Conditional Probability from Tables

Conditional probability asks: “Given that something is true, what’s the probability of something else?”

Example: Given that a student owns a dog, what’s the probability they also own a cat?

Look ONLY at dog owners (50 students). Of these, 15 also own a cat.

P(Cat | Dog) = 15/50 = 3/10

The vertical bar “|” means “given that.”

🔄 With and Without Replacement

The Big Question

When you pick something, do you put it back before picking again?

This changes EVERYTHING!

With Replacement (Put It Back)

You pick something, look at it, then PUT IT BACK before picking again.

Example: Drawing cards from a deck

A deck has 52 cards. You draw one card, put it back, shuffle, draw again.

P(Red on first draw) = 26/52 = 1/2 P(Red on second draw) = 26/52 = 1/2 (same because card went back!)

P(Red both times) = 1/2 × 1/2 = 1/4

The probabilities STAY THE SAME because nothing changes.

Without Replacement (Keep It Out)

You pick something and DON’T put it back. The next pick has fewer items to choose from!

Example: Same deck, but keep the first card

P(Red on first draw) = 26/52 = 1/2

Now there are only 51 cards left!

If first card was red: P(Red on second draw) = 25/51 (one red card is gone)

If first card was black: P(Red on second draw) = 26/51 (all red cards still there)

Tree Diagram Showing Without Replacement

Bag with 4 red and 2 blue marbles. Pick 2 without replacement.

graph TD
    A["6 marbles"] --> B["Red 4/6"]
    A --> C["Blue 2/6"]
    B --> D["Red 3/5"]
    B --> E["Blue 2/5"]
    C --> F["Red 4/5"]
    C --> G["Blue 1/5"]

P(both red) = 4/6 × 3/5 = 12/30 = 2/5

P(both blue) = 2/6 × 1/5 = 2/30 = 1/15

P(one of each) = (4/6 × 2/5) + (2/6 × 4/5) = 8/30 + 8/30 = 16/30 = 8/15

Quick Comparison

Putting It All Together: Choosing Your Tool

When to use each tool:

Final Example: Combining Tools

A bag has 3 red, 2 green, and 1 yellow marble. You pick 2 marbles without replacement. Find P(same color).

Using a Tree Diagram:

graph LR
    A["6 marbles"] --> B["R 3/6"]
    A --> C["G 2/6"]
    A --> D["Y 1/6"]
    B --> E["R 2/5"]
    B --> F["G 2/5"]
    B --> G["Y 1/5"]
    C --> H["R 3/5"]
    C --> I["G 1/5"]
    C --> J["Y 1/5"]
    D --> K["R 3/5"]
    D --> L["G 2/5"]
    D --> M["Y 0/5"]

P(same color) = P(RR) + P(GG) + P(YY)

• P(RR) = 3/6 × 2/5 = 6/30
• P(GG) = 2/6 × 1/5 = 2/30
• P(YY) = 1/6 × 0/5 = 0/30 (can’t pick 2 yellow!)

P(same color) = 6/30 + 2/30 + 0/30 = 8/30 = 4/15

Your Probability Detective Toolkit is Complete!

You now have 4 powerful tools to solve any probability problem:

🌳 Tree Diagrams help you map every possible path ⭕ Venn Diagrams organize overlapping groups 📊 Two-Way Tables handle categorical data brilliantly 🔄 Replacement knowledge tells you if events are independent or dependent

Remember: The best detectives don’t guess—they use the right tool for the job!

Now go solve some probability mysteries! 🔍✨
