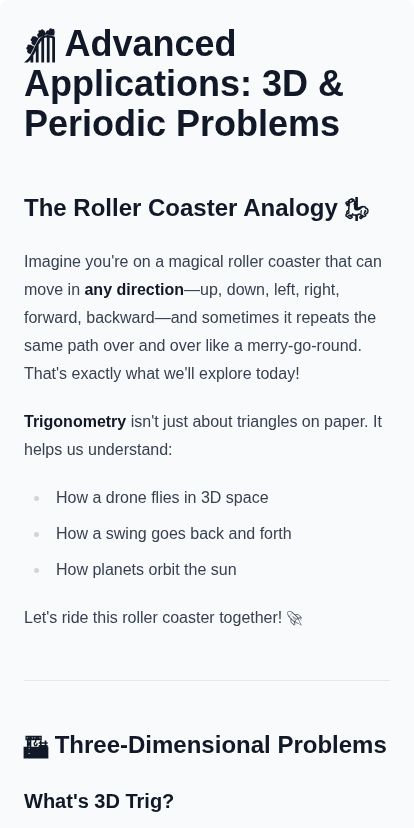

🎢 Advanced Applications: 3D & Periodic Problems
The Roller Coaster Analogy 🎠
Imagine you’re on a magical roller coaster that can move in any direction—up, down, left, right, forward, backward—and sometimes it repeats the same path over and over like a merry-go-round. That’s exactly what we’ll explore today!
Trigonometry isn’t just about triangles on paper. It helps us understand:
- How a drone flies in 3D space
- How a swing goes back and forth
- How planets orbit the sun
Let’s ride this roller coaster together! 🚀
🏗️ Three-Dimensional Problems
What’s 3D Trig?
Think of your room. It has:
- Length (left-right) → x-axis
- Width (front-back) → y-axis
- Height (up-down) → z-axis
When we solve problems in 3D, we need more than one angle to describe direction!
The Direction Angles
In 3D, a line makes angles with all three axes:
- α (alpha) = angle with x-axis
- β (beta) = angle with y-axis
- γ (gamma) = angle with z-axis
Magic Rule:
cos²α + cos²β + cos²γ = 1
Simple Example: The Leaning Lamp Post
A lamp post is tilted. It makes:
- 60° with the ground (x-y plane)
- 45° with the east-west direction
Question: How do we find its direction?
Solution approach:
- Draw the three axes
- Mark the angles given
- Use direction cosines to find the third angle
graph TD A["Lamp Post Base"] --> B["Lamp Top"] A --> C["East Direction - X"] A --> D["North Direction - Y"] A --> E["Up Direction - Z"] style B fill:#FFD700
3D Distance Formula
To find distance between two points in space:
d = √[(x₂-x₁)² + (y₂-y₁)² + (z₂-z₁)²]
Example: Distance from A(1,2,3) to B(4,6,3)
d = √[(4-1)² + (6-2)² + (3-3)²]
d = √[9 + 16 + 0]
d = √25 = 5 units
🚗 Moving Objects Problems
The Chase Scene!
Imagine two cars playing chase. One goes north, one goes east. When will they be closest?
Key Concepts
Relative Position: Where is object B compared to object A?
Relative Velocity: How fast is B moving compared to A?
Classic Example: Ships Passing
Story: Ship A sails east at 10 km/h. Ship B sails north at 8 km/h. Both start 50 km apart.
Finding closest approach:
graph TD A["Ship A - East"] --> C["Meeting Zone"] B["Ship B - North"] --> C C --> D["Closest Point"] style D fill:#FF6B6B
Step 1: Write positions as functions of time
- Position of A: (10t, 0)
- Position of B: (0, 8t)
Step 2: Find distance formula
d(t) = √[(10t)² + (8t - 50)²]
Step 3: Minimize by taking derivative and setting to zero
Projectile Motion
When you throw a ball:
- Horizontal: x = v₀·cos(θ)·t
- Vertical: y = v₀·sin(θ)·t - ½gt²
Example: Ball thrown at 20 m/s at 45°
- Horizontal speed: 20 × cos(45°) = 14.14 m/s
- Vertical speed: 20 × sin(45°) = 14.14 m/s
⚖️ Lami’s Theorem for Equilibrium
The Three-Way Tug of War
Imagine three people pulling a ring in different directions. If nobody wins (ring stays still), that’s equilibrium!
Lami’s Theorem States:
When three forces keep an object in equilibrium:
F₁ F₂ F₃
─────── = ─────── = ───────
sin(α) sin(β) sin(γ)
Where α, β, γ are the angles opposite to F₁, F₂, F₃.
Visual Understanding
graph TD O["Object in Equilibrium"] --> F1["Force 1"] O --> F2["Force 2"] O --> F3["Force 3"] style O fill:#4ECDC4
Example: Traffic Light
A traffic light hangs from two cables making angles of 30° and 45° with horizontal. The light weighs 200 N.
Find the tension in each cable!
Solution:
- Weight acts down = 200 N
- Cable tensions: T₁ and T₂
- Angles opposite to forces:
- Opposite to T₁: 180° - 45° = 135°
- Opposite to T₂: 180° - 30° = 150°
- Opposite to W: 30° + 45° = 75°
Using Lami’s theorem:
T₁/sin(135°) = T₂/sin(150°) = 200/sin(75°)
Solving:
- T₁ ≈ 146.4 N
- T₂ ≈ 103.5 N
🎵 Simple Harmonic Motion (SHM)
The Grandfather Clock
Ever watched a pendulum swing? Back and forth, back and forth—always the same rhythm. That’s SHM!
The Formula
x(t) = A · cos(ωt + φ)
Where:
- A = Amplitude (maximum distance)
- ω = Angular frequency (how fast)
- φ = Phase (where it starts)
- t = Time
Understanding Each Part
| Symbol | Meaning | Roller Coaster Analogy |
|---|---|---|
| A | How far it swings | Height of the hill |
| ω | How fast it repeats | Speed of the ride |
| φ | Starting position | Where you board |
Example: A Spring
A spring oscillates with:
- Amplitude = 5 cm
- Period = 2 seconds
Find position at t = 0.5 seconds (starting at maximum stretch)
Solution:
- ω = 2π/T = 2π/2 = π rad/s
- φ = 0 (starts at maximum)
- x(0.5) = 5 · cos(π × 0.5) = 5 · cos(π/2) = 0
At t = 0.5s, the spring passes through center!
Velocity and Acceleration
Velocity: v(t) = -Aω · sin(ωt + φ)
Acceleration: a(t) = -Aω² · cos(ωt + φ)
Key insight: Acceleration always points toward center. That’s why it keeps oscillating!
🌊 Modeling Periodic Phenomena
What Makes Something Periodic?
If it repeats after a fixed time, it’s periodic!
Examples everywhere:
- 🌅 Day and night (24 hours)
- 🌙 Moon phases (29.5 days)
- 💓 Heartbeat (about 1 second)
- 🎸 Sound waves (milliseconds)
The General Model
y = A · sin(B(x - C)) + D
Breaking it down:
| Parameter | Controls | Example Change |
|---|---|---|
| A | Height (amplitude) | Louder sound |
| B | Speed (frequency) | Higher pitch |
| C | Shift (phase) | Start time |
| D | Center line | Baseline |
Finding Period from B
Period = 2π / B
Example: Temperature Through the Day
Temperature varies from 15°C to 25°C. It’s coldest at 6 AM and warmest at 6 PM.
Build the model!
- Amplitude: A = (25-15)/2 = 5°C
- Center: D = (25+15)/2 = 20°C
- Period: 24 hours, so B = 2π/24 = π/12
- Phase shift: Maximum at t=18 (6 PM)
For cosine (max at start):
T(t) = 5·cos(π/12·(t - 18)) + 20
graph LR A["6 AM: 15°C"] --> B["Noon: 20°C"] B --> C["6 PM: 25°C"] C --> D["Midnight: 20°C"] D --> A style C fill:#FF6B6B style A fill:#4ECDC4
🌍 Real-World Periodic Models
1. Tides at the Beach
Ocean tides follow the moon—roughly 12.5 hours between high tides.
Model:
H(t) = 3·sin(2π/12.5·t) + 5
Where H = water height in meters
2. Ferris Wheel Position
A Ferris wheel:
- Diameter: 40 meters
- Revolution time: 5 minutes
- Center: 25 meters high
Your height as you ride:
h(t) = -20·cos(2π/5·t) + 25
(Negative cosine because you start at the bottom!)
3. Sound Waves
Musical note A = 440 Hz (cycles per second)
y(t) = sin(880πt)
The B = 880π because:
- Period = 1/440 seconds
- B = 2π × 440 = 880π
4. Electrical Current (AC)
Household AC in most countries:
- 50 or 60 Hz frequency
- Voltage swings between +170V and -170V
V(t) = 170·sin(120πt) [for 60 Hz]
5. Daylight Hours Through the Year
In northern cities, daylight varies from about 8 to 16 hours.
Model:
D(t) = 4·sin(2π/365·(t - 80)) + 12
Where t = day of year, and day 80 ≈ spring equinox.
🎯 Putting It All Together
The Connected Ideas
graph TD A["3D Problems"] --> E["Real Applications"] B["Moving Objects"] --> E C[Lami's Theorem] --> E D["SHM"] --> F["Periodic Models"] F --> E style E fill:#FFD700
Quick Reference
| Topic | Key Formula | Remember |
|---|---|---|
| 3D Direction | cos²α + cos²β + cos²γ = 1 | Three angles, one rule |
| Moving Objects | d(t), minimize | Distance changes with time |
| Lami’s | F/sin(opposite) = constant | Forces and opposite angles |
| SHM | x = A·cos(ωt + φ) | Amplitude, frequency, phase |
| Periodic | y = A·sin(B(x-C)) + D | Four parameters shape everything |
🌟 Final Thoughts
You’ve just traveled through the world of advanced trigonometry! From:
- Drones flying in 3D space
- Ships passing in the night
- Traffic lights hanging in balance
- Pendulums keeping perfect time
- Ocean tides following the moon
All these use the same beautiful mathematics. Next time you see a swing, a wave, or a spinning wheel—you’ll know the secret language they’re speaking! 🎢
Remember: Trigonometry isn’t just about triangles. It’s about understanding the rhythms and movements of our universe!
