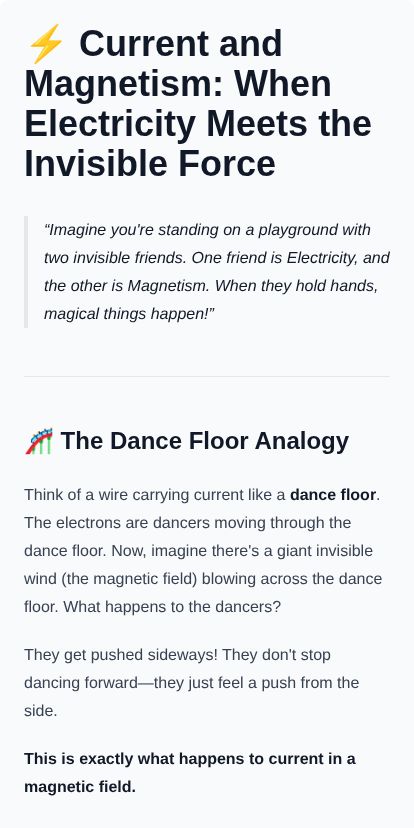

⚡ Current and Magnetism: When Electricity Meets the Invisible Force

Imagine you’re standing on a playground with two invisible friends. One friend is Electricity, and the other is Magnetism. When they hold hands, magical things happen!


🎢 The Dance Floor Analogy

Think of a wire carrying current like a dance floor. The electrons are dancers moving through the dance floor. Now, imagine there’s a giant invisible wind (the magnetic field) blowing across the dance floor. What happens to the dancers?

They get pushed sideways! They don’t stop dancing forward—they just feel a push from the side.

This is exactly what happens to current in a magnetic field.


🏋️ Force on a Current-Carrying Conductor

What’s Happening?

When current flows through a wire placed in a magnetic field, the wire experiences a push or force. It’s like the magnetic field is saying, “Hey wire, move over!”

The Simple Rule

The force depends on three things:

  • How strong the magnetic field is (B)
  • How much current flows (I)
  • How long the wire is in the field (L)

Formula: F = BIL sin(θ)

Where θ is the angle between current direction and magnetic field.

🖐️ The Right-Hand Rule

Hold your right hand like this:

  1. Fingers point in current direction (I)
  2. Curl fingers toward magnetic field (B)
  3. Thumb shows the force direction (F)
         Thumb (Force)
            ↑
            |
     ←------⊕-----→ Fingers (Current)
            |
         Curl toward B

Real Example

A wire of length 10 cm carries 2 A current in a magnetic field of 0.5 T at 90°.

Force = 0.5 × 2 × 0.1 × 1 = 0.1 N

That’s enough force to move a small paper clip!


🤝 Two Wires Having a Conversation

Parallel Conductor Force

Imagine two wires running side by side, like two friends walking together. Each wire creates its own magnetic field around it. And guess what? Each wire feels the other wire’s magnetic field!

The Friendship Rules

Wire 1 Current Wire 2 Current Result
Attract (best friends!)
Repel (not getting along!)
graph TD A["Two Parallel Wires"] --> B{Same Direction?} B -->|Yes| C["🤗 ATTRACT<br>Come closer!"] B -->|No| D["😤 REPEL<br>Push apart!"]

Why Does This Happen?

Each wire creates circular magnetic field lines around it. When currents flow in the same direction, the fields between the wires cancel out a bit, and outside fields push the wires together—like a magnetic hug!

When currents are opposite, the fields between them add up and push the wires apart.

Formula for Force Between Wires

For two wires separated by distance d:

F/L = (μ₀ × I₁ × I₂) / (2π × d)

Where μ₀ = 4π × 10⁻⁷ T·m/A


📏 The Definition of Ampere

The Official Ruler for Current

Scientists needed a way to measure current precisely. They chose the interaction between parallel wires!

1 Ampere is the current that, when flowing through two infinitely long parallel wires placed 1 meter apart in vacuum, produces a force of 2 × 10⁻⁷ N per meter of wire length.

Simple Version

If two wires are 1 meter apart and each has 1 Ampere flowing, they pull (or push) each other with a force of 2 × 10⁻⁷ N for every meter of their length.

That’s incredibly tiny! About the weight of a grain of salt spread over a meter.


🔄 Torque on a Current Loop

The Spinning Rectangle

Imagine a rectangular loop of wire placed in a magnetic field. Current flows around the loop. What happens?

It tries to spin!

graph TD A["Current Loop in B Field"] --> B["Top wire pushed UP"] A --> C["Bottom wire pushed DOWN"] B --> D["Creates TWIST<br>= Torque!"] C --> D

Why Does It Spin?

  • The top of the loop has current going one way → force pushes it one direction
  • The bottom has current going the opposite way → force pushes it the other direction
  • These opposite forces on opposite sides create a twist (torque)

The Torque Formula

τ = NBIA sin(θ)

Where:

  • N = number of loops (coils)
  • B = magnetic field strength
  • I = current
  • A = area of the loop
  • θ = angle between loop and field

Example

A coil with 100 turns, area 0.01 m², in a 0.2 T field, with 0.5 A current at 90°:

τ = 100 × 0.2 × 0.5 × 0.01 × 1 = 0.1 N·m

That’s enough torque to turn a small motor!


🔬 Moving Coil Galvanometer

The Current Detective

A galvanometer is like a detective that finds tiny currents. It uses everything we’ve learned!

How It Works

graph TD A["Tiny Current Enters"] --> B["Coil in Magnetic Field"] B --> C["Torque Makes Coil Rotate"] C --> D["Spring Resists Rotation"] D --> E["Needle Points to Reading"]

The Parts

Part Job
Coil Carries the current
Magnets Creates the magnetic field
Spring Pulls needle back
Needle Shows the reading

The Balance

When current flows → coil tries to rotate (torque = NBIA)

Spring fights back → restoring torque = kθ

At balance: NBIA = kθ

So: θ = (NBA/k) × I

The angle is directly proportional to current!

Current Sensitivity

Iₛ = θ/I = NBA/k

Higher NBA or lower k = more sensitive galvanometer


🔧 Converting to Ammeter

Making a Current Meter

A galvanometer is too sensitive for big currents—it would break! We need to protect it.

The Shunt Resistor

We add a small resistor in parallel called a “shunt.” Most current bypasses the galvanometer through this shortcut.

    Current I enters
          ↓
    ┌─────┴─────┐
    │           │
   [G]         [S]
 (tiny Ig)  (big Is)
    │           │
    └─────┬─────┘
          ↓
    Current I exits

The Formula

For full scale deflection current Ig in galvanometer, resistance G:

To measure current I (where I >> Ig):

Shunt Resistance: S = (Ig × G) / (I - Ig)

Example

Galvanometer: G = 50Ω, Ig = 1 mA

To measure up to 1 A:

S = (0.001 × 50) / (1 - 0.001) = 0.05 / 0.999 ≈ 0.05 Ω

A tiny 0.05Ω resistor lets us measure currents 1000× larger!


📊 Converting to Voltmeter

Making a Voltage Meter

Now we want to measure voltage instead of current. A galvanometer measures current, so how?

Add a big resistor in series!

This limits how much current can flow through for any given voltage.

    Voltage V
      (+)
       ↓
      [R] ← High resistance
       ↓
      [G] ← Galvanometer
       ↓
      (-)

The Formula

For a galvanometer with resistance G and full scale current Ig:

To measure voltage V:

Series Resistance: R = (V/Ig) - G

Example

Galvanometer: G = 50Ω, Ig = 1 mA

To measure up to 10 V:

R = (10 / 0.001) - 50 = 10000 - 50 = 9950 Ω

We need about 10 kΩ in series!

Why High Resistance?

A good voltmeter should not steal current from the circuit it’s measuring. High resistance means very little current flows—just enough to move the needle.


🎯 Quick Summary

graph TD A["Current in B Field"] --> B["Force on Wire<br>F = BIL sin θ"] A --> C["Parallel Wires<br>Attract or Repel"] C --> D["Defines 1 Ampere"] A --> E["Current Loop<br>τ = NBIA sin θ"] E --> F["Galvanometer<br>Detects Current"] F --> G["+ Shunt → Ammeter"] F --> H["+ Series R → Voltmeter"]

🌟 Key Takeaways

  1. Current in a magnetic field feels a force – like wind pushing dancers sideways

  2. Two parallel wires interact – same direction = attract, opposite = repel

  3. 1 Ampere is defined by the force between two wires 1 meter apart

  4. Current loops rotate in magnetic fields – this is how motors work!

  5. Galvanometer = sensitive current detector using coil + magnet + spring

  6. Ammeter = galvanometer + small parallel shunt resistor

  7. Voltmeter = galvanometer + large series resistor


You’ve just learned how electricity and magnetism dance together to create forces, define units, spin motors, and measure both current and voltage. The invisible friends are now your friends too! ⚡🧲
