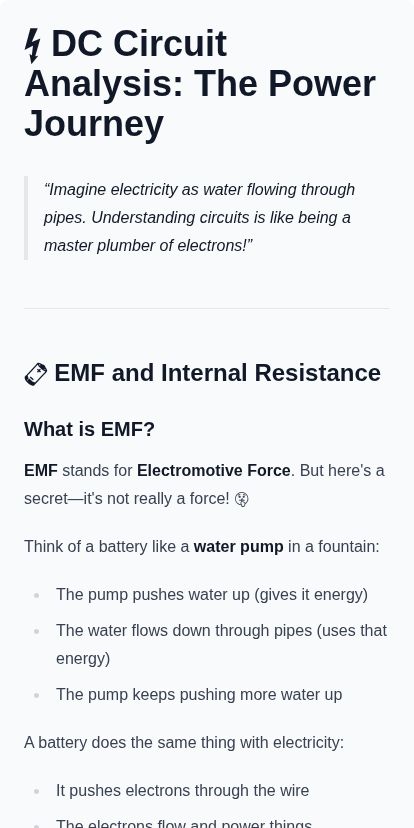

DC Circuit Analysis

⚡ DC Circuit Analysis: The Power Journey

Imagine electricity as water flowing through pipes. Understanding circuits is like being a master plumber of electrons!

🔋 EMF and Internal Resistance

What is EMF?

EMF stands for Electromotive Force. But here’s a secret—it’s not really a force! 🤫

Think of a battery like a water pump in a fountain:

• The pump pushes water up (gives it energy)
• The water flows down through pipes (uses that energy)
• The pump keeps pushing more water up

A battery does the same thing with electricity:

• It pushes electrons through the wire
• The electrons flow and power things
• The battery keeps pushing more electrons

EMF (ε) = The total energy the battery gives to each electron

EMF is measured in Volts (V)
A 9V battery has EMF = 9 Volts

What is Internal Resistance?

Here’s something cool: every battery has resistance inside it!

Think of our water pump again:

• Even the best pump has some friction inside
• This friction makes the pump work a little less efficiently
• The battery is the same—it has tiny resistance inside

Internal Resistance ® = The hidden resistance inside a battery

graph TD
    A["🔋 Battery"] --> B["EMF ε"]
    A --> C["Internal Resistance r"]
    B --> D["Pushes electrons"]
    C --> E["Slows electrons slightly"]

Example:

A AA battery might have EMF = 1.5V and internal resistance r = 0.5Ω

🎯 Terminal Voltage

The Real Voltage You Get

Remember internal resistance? It “eats up” some voltage!

Terminal Voltage (V) = What you actually get from the battery

Think of buying ice cream:

• You pay ₹100 (EMF = total energy)
• Shop keeper keeps ₹10 (internal resistance “eats” some)
• You get ₹90 worth of ice cream (terminal voltage = what’s left)

The Magic Formula

V = ε - Ir

Where:
V = Terminal voltage (what you get)
ε = EMF (total voltage)
I = Current flowing
r = Internal resistance

Example:

Battery: EMF = 12V, internal resistance = 2Ω Current flowing: I = 2A Terminal Voltage = 12 - (2 × 2) = 12 - 4 = 8V

💡 Key Insight: When more current flows, terminal voltage drops!

🔗 Cell Combinations

Series Connection (Batteries in a Line)

Imagine stacking water pumps on top of each other:

• Each pump pushes water higher
• Total height = all pumps added together

Series = Add the EMFs!

graph LR
    A["🔋 1.5V"] --> B["🔋 1.5V"] --> C["🔋 1.5V"]
    D["Total = 4.5V"]

Formula:

Total EMF = ε₁ + ε₂ + ε₃ + ...
Total internal resistance = r₁ + r₂ + r₃ + ...

Example:

3 cells: each 1.5V, each 0.5Ω internal resistance Total EMF = 1.5 + 1.5 + 1.5 = 4.5V Total r = 0.5 + 0.5 + 0.5 = 1.5Ω

Parallel Connection (Batteries Side by Side)

Now imagine pumps working together side by side:

• Each pump pushes with same force
• But they can push more water together!

Parallel = Same EMF, but can give more current!

graph TD
    A["🔋 1.5V"] --> D["Combined Output"]
    B["🔋 1.5V"] --> D
    C["🔋 1.5V"] --> D
    D --> E["EMF = 1.5V"]
    D --> F["Lower internal resistance!"]

Formula for identical cells:

Total EMF = ε (same as one cell)
Total internal resistance = r/n (where n = number of cells)

Example:

3 identical cells in parallel: each 1.5V, each 0.6Ω Total EMF = 1.5V Total r = 0.6/3 = 0.2Ω

🚦 Kirchhoff’s Junction Rule

The Traffic Circle of Electricity

Imagine a busy traffic circle:

• Cars come in from different roads
• Cars leave through different roads
• No cars appear or disappear!

Electricity works the same way at junctions:

Junction Rule: Current in = Current out

graph TD
    A["I₁ = 3A"] --> J((Junction))
    B["I₂ = 2A"] --> J
    J --> C["I₃ = 5A"]

Formula:

ΣI(in) = ΣI(out)

At any junction:
Current entering = Current leaving

Example:

At a junction: 3A and 2A flow in Current flowing out = 3 + 2 = 5A

💡 Why? Electrons can’t pile up or vanish—they must keep moving!

🔄 Kirchhoff’s Loop Rule

The Energy Conservation Detective

Walk around any closed path in a circuit. When you return to start:

Loop Rule: Total voltage gained = Total voltage dropped

Think of a roller coaster:

• Go up the hill (battery gives energy = +V)
• Go down slopes (resistors use energy = -V)
• End where you started (total change = 0)

graph TD
    A["Start Here"] --> B["+ε from battery"]
    B --> C["-IR₁ across resistor"]
    C --> D["-IR₂ across resistor"]
    D --> A
    E["Total: ε - IR₁ - IR₂ = 0"]

Formula:

Around any closed loop:
Σε - ΣIR = 0

Or simply:
Sum of EMFs = Sum of voltage drops

Example:

Loop with 12V battery, resistors R₁ = 2Ω, R₂ = 4Ω Current I flows through both 12 = I(2) + I(4) 12 = 6I I = 2A

⚖️ Wheatstone Bridge

The Balance Master

A Wheatstone Bridge is like a see-saw for electricity!

When perfectly balanced:

• No current flows through the middle
• We can find unknown resistance

graph TD
    A((A)) --> B["P"]
    A --> C["R"]
    B --> D((B))
    C --> D
    B --> E["Galvanometer"]
    C --> E
    D --> F["Q"]
    D --> G["S"]
    F --> H((C))
    G --> H

The Balance Condition

When the bridge is balanced (galvanometer shows zero):

P/Q = R/S

Cross multiply:
P × S = Q × R

Example:

P = 100Ω, Q = 200Ω, R = 150Ω, S = ? 100/200 = 150/S S = (200 × 150)/100 = 300Ω

💡 Pro Tip: If you know 3 resistances, you can find the 4th!

📏 Meter Bridge

Wheatstone Bridge’s Practical Cousin

A meter bridge is a 100 cm wire that acts like a Wheatstone bridge!

Think of it as a resistance ruler:

• Slide a pointer along the wire
• Find the balance point
• Calculate the unknown resistance

graph LR
    A["0 cm"] --> B["Balance Point: L cm"] --> C["100 cm"]
    D["Unknown R"] --> B
    B --> E["Known S"]

The Formula

At balance point (length L from one end):

R/S = L/(100-L)

So:
R = S × L/(100-L)

Example:

Known resistance S = 10Ω Balance at L = 40 cm R = 10 × 40/(100-40) R = 10 × 40/60 = 400/60 = 6.67Ω

Why It Works

The wire has uniform resistance. At length L:

• Resistance of left part ∝ L
• Resistance of right part ∝ (100-L)
• It’s a Wheatstone bridge in disguise!

🎚️ Potentiometer

The Voltage Measuring Superhero

A potentiometer is like a very long ruler for voltage!

Why is it special?

• Measures voltage WITHOUT drawing current
• Super accurate (no internal resistance problem!)

How It Works

Imagine a long, straight road with equal slope:

• Walk 1 meter = climb 1 unit
• Walk 2 meters = climb 2 units
• Distance tells you height!

graph TD
    A["Driver Cell"] --> B["Long Uniform Wire"]
    B --> C["Length L₁: Unknown EMF"]
    B --> D["Length L₂: Known EMF"]
    E["Ratio of lengths = Ratio of EMFs"]

The Key Formula

ε₁/ε₂ = L₁/L₂

To find unknown EMF:
ε₁ = ε₂ × (L₁/L₂)

Example:

Standard cell: ε₂ = 1.5V balances at L₂ = 60 cm Unknown cell balances at L₁ = 45 cm ε₁ = 1.5 × (45/60) = 1.5 × 0.75 = 1.125V

Uses of Potentiometer

1. Compare EMFs of two cells
2. Measure internal resistance of a cell
3. Calibrate voltmeters accurately

🎓 Quick Summary

🌟 The Big Picture

All these concepts connect like puzzle pieces:

graph TD
    A["EMF & Internal Resistance"] --> B["Terminal Voltage"]
    B --> C["Cell Combinations"]
    C --> D[Kirchhoff's Rules]
    D --> E["Wheatstone Bridge"]
    E --> F["Meter Bridge"]
    E --> G["Potentiometer"]

You’ve just learned how electricity flows, combines, and gets measured!

Every phone, computer, and car uses these principles. You now understand the language of circuits! ⚡

Remember: Electricity is just electrons going on an adventure. Now you know how to guide their journey!
