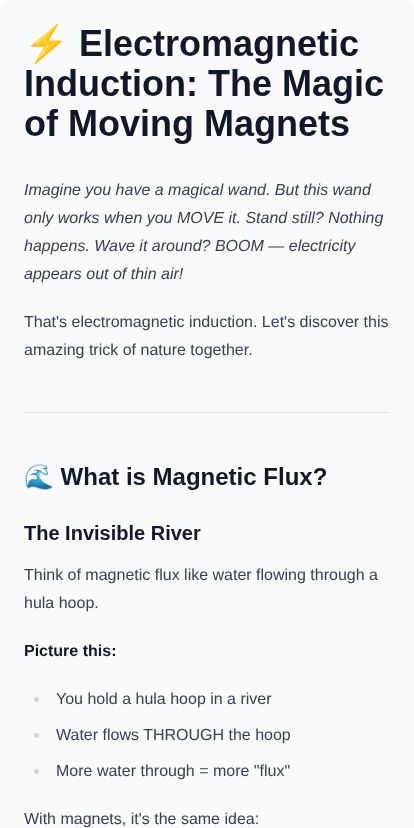

⚡ Electromagnetic Induction: The Magic of Moving Magnets
Imagine you have a magical wand. But this wand only works when you MOVE it. Stand still? Nothing happens. Wave it around? BOOM — electricity appears out of thin air!
That’s electromagnetic induction. Let’s discover this amazing trick of nature together.
🌊 What is Magnetic Flux?
The Invisible River
Think of magnetic flux like water flowing through a hula hoop.
Picture this:
- You hold a hula hoop in a river
- Water flows THROUGH the hoop
- More water through = more “flux”
With magnets, it’s the same idea:
- The hula hoop is your wire loop
- The “water” is invisible magnetic field lines
- Magnetic flux = how many field lines pass through your loop
The Formula Friends
Φ = B × A × cos(θ)
Where:
- Φ (phi) = magnetic flux (in Webers)
- B = magnetic field strength
- A = area of your loop
- θ = angle between field and loop
Simple Example 🎯
Hold your hula hoop facing the river → Maximum water flows through!
Tilt it sideways → Less water gets through.
Turn it parallel to the flow → Zero water passes through.
Same with magnetic flux!
🔮 Faraday’s Law: The Discovery That Changed Everything
The Story
In 1831, Michael Faraday made a shocking discovery (pun intended!).
He noticed: When magnetic flux CHANGES, electricity appears!
It’s like magic, but it’s science.
The Rule
EMF = -N × (ΔΦ/Δt)
Translation for humans:
- More loops (N) = more electricity
- Faster change = more electricity
- The minus sign? That’s Lenz’s Law (coming next!)
Real-Life Example 🎸
Electric guitar pickups:
- Guitar string vibrates over a magnet
- Magnetic flux through the coil changes
- Electricity is induced!
- Amplifier makes it LOUD
No batteries in the pickup. Pure electromagnetic magic!
graph TD A["String Vibrates"] --> B["Flux Changes"] B --> C["EMF Induced"] C --> D["Sound Created!"]
🛡️ Lenz’s Law: Nature’s Stubborn Rule
The Lazy Universe
Nature is lazy. It HATES change.
When you try to change magnetic flux, nature fights back!
The Rule in Kid-Speak
“The induced current creates a magnetic field that OPPOSES the change that caused it.”
Think of it like this:
- You push a magnet toward a coil
- The coil says “NOPE!” and creates a force pushing it away
- You pull the magnet away
- The coil says “WAIT!” and tries to pull it back
Why the Minus Sign?
Remember Faraday’s formula had a minus sign?
That minus sign IS Lenz’s Law. It tells us the direction.
Example: Dropping a Magnet 🧲
Drop a magnet through a copper tube:
- Magnet falls → flux changes in tube
- Tube creates opposing magnetic field
- Magnet slows down dramatically!
- It floats down like a feather
No friction. No touching. Pure electromagnetic braking!
💡 Induced EMF and Current
EMF = Electromagnetic Force (Sort of)
EMF is like the “push” that moves electrons.
Think of it as electrical pressure — like water pressure in a pipe.
When Does Current Flow?
EMF alone isn’t enough!
You need a complete circuit:
- Open circuit → EMF exists, no current flows
- Closed circuit → EMF pushes current around
The Power Formula
Induced EMF = Rate of flux change
Current = EMF ÷ Resistance
Practical Example: Flashlight Shake 🔦
Those shake-to-charge flashlights:
- Magnet slides through coil
- Flux changes rapidly
- EMF induced
- Current charges the battery
- Light shines!
Your arm movement → electricity → light. Magic? No, physics!
🚗 Motional EMF: Electricity from Movement
The Moving Wire Trick
Move a wire through a magnetic field = instant electricity!
How It Works
Imagine a wire sliding on rails through a magnetic field:
B (magnetic field pointing into page)
↓ ↓ ↓ ↓ ↓ ↓
┌───────────┐
│ │
│ ──→ │ Wire moving right
│ v │
└───────────┘
Formula:
EMF = B × L × v
- B = magnetic field strength
- L = length of wire in field
- v = velocity of wire
Real Example: Train Tracks 🚂
Old-school train speedometers used this!
- Magnet on the train
- Wire on the track (or vice versa)
- Faster train = higher EMF = higher speed reading
🌀 Sinusoidal EMF Generation
The Spinning Loop
This is how power plants work!
Spin a loop in a magnetic field → get a wave-shaped voltage.
Why Sinusoidal (Wavy)?
As the loop rotates:
- Facing field directly → Maximum flux
- Turned sideways → Zero flux
- Facing opposite → Maximum negative flux
This creates a smooth wave pattern.
graph TD A["0° - Zero EMF"] --> B["90° - Max EMF"] B --> C["180° - Zero EMF"] C --> D["270° - Max Negative EMF"] D --> E["360° - Zero EMF - Cycle Repeats"]
The Formula
EMF = EMF_max × sin(ωt)
Where ω = rotational speed
Power Plant Reality 🏭
Every electrical outlet in your home receives power that was generated exactly this way:
- Giant loops spinning
- In powerful magnetic fields
- At exactly 50 or 60 times per second
That’s why it’s called “AC” — Alternating Current!
🌀 Eddy Currents: The Swirling Ghosts
What Are They?
When a solid metal piece moves through a magnetic field, tiny circular currents swirl inside it.
These are eddy currents — like tiny whirlpools of electricity.
Why Do They Matter?
Problem: They waste energy as heat!
- Transformers get hot
- Motors lose efficiency
- Energy disappears
Solution: Use laminated (layered) cores!
- Thin sheets of metal
- Insulated from each other
- Blocks the eddy current paths
Cool Eddy Current Trick 🎭
Hold an aluminum plate between a magnet’s poles. Spin the magnet.
The plate spins too!
No contact. No wires. Just eddy currents creating forces.
This is how some electricity meters work!
🛑 Electromagnetic Braking: Stop Without Touching
The Gentle Giant
Normal brakes use friction. They wear out. They squeal.
Electromagnetic brakes use induced currents. No contact!
How It Works
- Moving metal enters magnetic field
- Eddy currents form in the metal
- These currents create opposing magnetic field
- Object slows down smoothly
Where You’ll Find Them
Roller Coasters 🎢
- At the end of the ride
- Metal fins pass through magnets
- Smooth, reliable stopping
Trains 🚄
- High-speed trains use them
- No wear on brake pads
- Works even when wet
Exercise Bikes 🚴
- Resistance without friction
- Smooth workout
- Never wears out
The Beautiful Part
- Faster you go → Stronger the braking
- As you slow → Braking reduces
- Result: Smooth, gradual stop
No jolting. No screeching. Just physics being elegant.
🎯 Quick Summary
| Concept | Kid-Friendly Version |
|---|---|
| Magnetic Flux | Water through a hoop |
| Faraday’s Law | Change = Electricity |
| Lenz’s Law | Nature fights change |
| Induced EMF | Electrical “push” |
| Motional EMF | Moving wire = power |
| Sinusoidal EMF | Spinning = waves |
| Eddy Currents | Swirling ghost currents |
| EM Braking | Stop without touching |
🌟 The Big Picture
Everything connects:
graph TD A["Move Magnet/Wire"] --> B["Flux Changes"] B --> C["EMF Induced - Faraday"] C --> D["Current Opposes - Lenz"] D --> E["Forces Created"] E --> F["Braking/Motion Effects"]
Electromagnetic induction powers:
- Every power plant
- Every transformer
- Every electric motor
- Every generator
- Modern transportation braking
You’re not just learning physics. You’re understanding the invisible force that runs our world!
“Move a magnet, make electricity. It’s that simple — and that amazing.” ⚡
