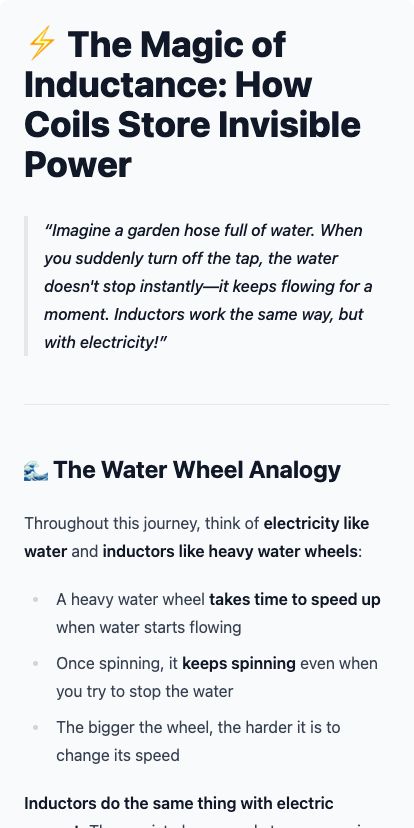

⚡ The Magic of Inductance: How Coils Store Invisible Power
Imagine a garden hose full of water. When you suddenly turn off the tap, the water doesn’t stop instantly—it keeps flowing for a moment. Inductors work the same way, but with electricity!
🌊 The Water Wheel Analogy
Throughout this journey, think of electricity like water and inductors like heavy water wheels:
- A heavy water wheel takes time to speed up when water starts flowing
- Once spinning, it keeps spinning even when you try to stop the water
- The bigger the wheel, the harder it is to change its speed
Inductors do the same thing with electric current. They resist change and store energy in invisible magnetic fields!
🔄 Self-Inductance: The Coil That Fights Back
What Is It?
When electricity flows through a coiled wire, something magical happens:
- The current creates a magnetic field around the coil
- If you try to change the current, the magnetic field pushes back
- This “fighting back” is called self-inductance
Simple Example
Think of pushing a shopping cart:
- Empty cart = Easy to speed up or slow down
- Cart full of heavy stuff = Takes more effort to change speed
A coil with high inductance is like a heavy cart—it resists changes to current flow.
The Formula
L = -V / (dI/dt)
Where:
- L = Inductance (measured in Henrys, H)
- V = Voltage induced in the coil
- dI/dt = How fast the current is changing
💡 Key Insight: The faster you try to change the current, the harder the inductor pushes back!
🧲 Solenoid Inductance: The Power of Coils
What’s a Solenoid?
A solenoid is just a wire wrapped into a neat coil—like a spring! The more loops you add, the more powerful it becomes.
graph TD A["Wire"] --> B["Wrap into coil"] B --> C["Add more loops"] C --> D["Stronger magnetic field!"]
The Magic Formula
L = μ₀ × n² × A × l
Let’s break this down:
| Symbol | What It Means | Simple Explanation |
|---|---|---|
| μ₀ | Permeability | How “welcoming” space is to magnetism |
| n | Turns per meter | How tightly you wrap the wire |
| A | Cross-section area | How fat the coil is |
| l | Length | How long the coil is |
Real Example
Building a stronger solenoid:
- 🔹 More loops = More inductance (n² means double the loops = 4× the power!)
- 🔹 Fatter coil = More inductance
- 🔹 Longer coil = More inductance
🎯 Pro Tip: That’s why transformers and motors have so many loops of wire!
⚡ Back EMF: The Coil’s Revenge
The Story
Imagine you’re pushing that heavy water wheel, and suddenly you stop pushing. What happens? The wheel keeps spinning and actually pushes back against you!
This is exactly what happens in inductors:
- Current flows through the coil → Creates a magnetic field
- You try to stop the current → The magnetic field collapses
- The collapsing field creates a reverse voltage → This is Back EMF!
Why It Matters
graph TD A["Motor running"] --> B["You flip the switch OFF"] B --> C["Current tries to stop"] C --> D["Magnetic field collapses"] D --> E["Back EMF fights the change"] E --> F["Can create dangerous sparks!"]
Real-Life Example
When you turn off a fan:
- The motor doesn’t stop instantly
- The spinning magnetic field creates back EMF
- This is why fan switches sometimes spark!
⚠️ Important: Back EMF can be much higher than the original voltage. That’s why electrical circuits need protection diodes!
🤝 Mutual Induction: Coils Talking to Each Other
The Concept
Put two coils near each other. When current changes in one coil, it creates a changing magnetic field that affects the other coil!
It’s like two people on a seesaw:
- When one goes up, the other goes down
- They’re connected without touching!
How It Works
graph TD A["Coil 1: Current changes"] --> B["Magnetic field changes"] B --> C["Field reaches Coil 2"] C --> D["Coil 2: Voltage induced!"]
The Formula
M = k × √(L₁ × L₂)
Where:
- M = Mutual inductance
- k = Coupling coefficient (0 to 1)
- L₁, L₂ = Individual inductances
Real-World Magic: Transformers!
Your phone charger uses this:
- Wall socket → High voltage AC goes into Coil 1
- Coil 1’s magnetic field → Reaches Coil 2
- Coil 2 → Outputs safe low voltage for your phone
🔌 No wires connect the two coils! Energy transfers through the magnetic field!
🔋 Inductor Energy Storage: Invisible Batteries
The Big Idea
Inductors store energy not in chemicals like batteries, but in their magnetic field!
How Much Energy?
E = ½ × L × I²
Where:
- E = Energy stored (in Joules)
- L = Inductance (in Henrys)
- I = Current (in Amps)
Visualizing It
| Current (A) | Energy Stored |
|---|---|
| 1 A | ½ × L × 1 = 0.5L |
| 2 A | ½ × L × 4 = 2L |
| 3 A | ½ × L × 9 = 4.5L |
📈 Notice: Doubling the current gives you 4× the energy! (That’s the I² magic!)
Real Example
A car ignition system:
- Battery sends current through an inductor (ignition coil)
- Energy builds up in the magnetic field
- Current is suddenly cut off
- All that stored energy releases as a huge spark
- Spark ignites the fuel! 💥
🌌 Magnetic Energy Density: Energy Packed in Space
What Is It?
Every bit of space containing a magnetic field holds energy. Energy density tells us how much energy is packed into each cubic meter!
The Formula
u = B² / (2μ₀)
Where:
- u = Energy per cubic meter (J/m³)
- B = Magnetic field strength (Tesla)
- μ₀ = Permeability of free space
Understanding It
graph TD A["Weak magnetic field"] --> B["Low energy density"] C["Strong magnetic field"] --> D["High energy density"] E["B² means double field"] --> F["4× the energy!"]
Mind-Blowing Fact
MRI machines have incredibly strong magnetic fields:
- Typical MRI: 1.5 to 3 Tesla
- Energy density at 3T: About 3.6 million Joules per cubic meter!
- That’s enough energy to lift a small car… stored invisibly in space!
🎯 Putting It All Together
| Concept | One-Liner | Formula |
|---|---|---|
| Self-inductance | Coil fights current change | L = -V/(dI/dt) |
| Solenoid inductance | More loops = More power | L = μ₀n²Al |
| Back EMF | Collapsing field’s revenge | V = -L(dI/dt) |
| Mutual induction | Coils talk through fields | M = k√(L₁L₂) |
| Energy storage | Invisible magnetic battery | E = ½LI² |
| Energy density | Power packed in space | u = B²/(2μ₀) |
🚀 Why This Matters
Inductance is everywhere in modern life:
- 📱 Phone chargers → Transformers use mutual induction
- 🚗 Cars → Ignition coils store and release energy
- 🔊 Speakers → Voice coils use self-inductance
- 💡 LED drivers → Inductors smooth out power
- 🏥 MRI machines → Massive magnetic energy storage
🌟 You now understand the invisible force that powers our modern world!
🧠 Key Takeaways
- Inductors resist change — like heavy spinning wheels
- More coils = More inductance — the n² relationship
- Back EMF can be dangerous — always protect circuits!
- Two coils can share energy — that’s how transformers work
- Magnetic fields store energy — invisible power banks
- Stronger fields pack more energy — B² relationship
Remember: Every time you charge your phone, use a power tool, or start your car, inductance is working its invisible magic! ⚡
