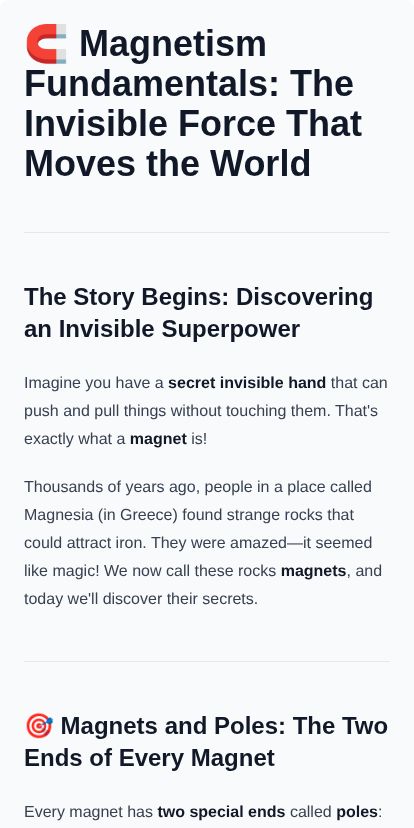

🧲 Magnetism Fundamentals: The Invisible Force That Moves the World

The Story Begins: Discovering an Invisible Superpower

Imagine you have a secret invisible hand that can push and pull things without touching them. That’s exactly what a magnet is!

Thousands of years ago, people in a place called Magnesia (in Greece) found strange rocks that could attract iron. They were amazed—it seemed like magic! We now call these rocks magnets, and today we’ll discover their secrets.

🎯 Magnets and Poles: The Two Ends of Every Magnet

Every magnet has two special ends called poles:

• North Pole (N)
• South Pole (S)

The Golden Rule of Magnets

Think of magnets like best friends and enemies:

✅ OPPOSITES ATTRACT: North ❤️ South
❌ SAME REPEL: North 💔 North, South 💔 South

Simple Example:

• Put two magnets together with N facing S → They snap together!
• Put two magnets together with N facing N → They push away!

graph TD
    A["🧲 Magnet 1<br>N pole"] -->|ATTRACTS| B["🧲 Magnet 2<br>S pole"]
    C["🧲 Magnet 1<br>N pole"] -.->|REPELS| D["🧲 Magnet 2<br>N pole"]

Can You Separate the Poles?

Here’s something magical: You can NEVER get just one pole!

If you break a magnet in half, each piece becomes a new complete magnet with both N and S poles. It’s like cutting a worm—each piece becomes a whole new worm!

🌀 Magnetic Field: The Invisible Bubble of Power

A magnetic field is like an invisible bubble of power around every magnet. You can’t see it, but it’s always there, ready to push or pull.

What Is It Really?

Think of it like the smell around a flower:

• You can’t see the smell
• But you know it’s there because you can feel it with your nose
• The closer you get, the stronger it is

A magnetic field works the same way:

• You can’t see it
• But iron objects feel its pull
• The closer to the magnet, the stronger the pull

Real-Life Example:

• Hold a paperclip near a magnet (not touching)
• The paperclip feels a pull—that’s the magnetic field in action!

📐 Magnetic Field Lines: Drawing the Invisible

Scientists wanted to “see” magnetic fields, so they created magnetic field lines—imaginary lines that show us where the field goes.

Rules of Field Lines

1️⃣ Lines come OUT of North pole
2️⃣ Lines go INTO South pole
3️⃣ Lines NEVER cross each other
4️⃣ Closer lines = Stronger field

graph LR
    subgraph Magnet
    N["N"] --> S["S"]
    end
    N -->|Field lines OUT| SPACE1["..."]
    SPACE2["..."] -->|Field lines IN| S

See It Yourself!

Fun Experiment:

1. Place a magnet under a paper
2. Sprinkle iron filings on the paper
3. Watch the filings arrange themselves along the field lines!

The filings show you the invisible magnetic field—like revealing a hidden treasure map!

🌍 Earth’s Magnetic Field: Our Planet Is a Giant Magnet!

Here’s an amazing secret: Earth itself is a huge magnet!

How Does It Work?

Deep inside Earth, there’s hot liquid iron moving around. This creates a giant magnetic field that wraps around our whole planet like a protective blanket.

graph TD
    A["🌍 Earth"] --> B["Geographic North Pole"]
    A --> C["Geographic South Pole"]
    A --> D["Magnetic South Pole<br>near Geographic North"]
    A --> E["Magnetic North Pole<br>near Geographic South"]

The Compass Trick

Wait—here’s something confusing but important:

• Your compass needle points toward Geographic North
• But the compass needle’s North pole is attracted there
• That means Earth’s Magnetic South pole is near the Geographic North!

Think of it this way:

• Opposites attract, remember?
• The “N” on your compass is attracted to Earth’s magnetic “S”
• But we call it “North” because that’s where it points on maps

Why This Matters

Earth’s magnetic field:

• Helps birds navigate during migration
• Protects us from harmful space radiation
• Lets us use compasses to find our way

🧲 Bar Magnet as a Dipole: Two Poles Working Together

A dipole simply means “two poles.” Every bar magnet is a magnetic dipole—it has both North and South working as a team.

Understanding Dipole

Think of a dipole like a battery:

• A battery has + and − ends
• A magnet has N and S ends
• You need BOTH ends for it to work!

Key Point: The two poles are:

• Equal in strength
• Opposite in nature
• Always together (you can’t have one without the other)

graph LR
    N["N Pole<br>➕ Magnetic Charge"] --- CENTER["Bar Magnet"] --- S["S Pole<br>➖ Magnetic Charge"]

🔍 Bar Magnet Field: Mapping the Force Around It

The magnetic field around a bar magnet has a beautiful, specific pattern.

The Shape of the Field

          ↗️ ↑ ↖️
        ↗️ [N] ↖️
      →  ═══════  ←
        ↘️ [S] ↙️
          ↘️ ↓ ↙️

Key Observations:

1. At the poles: Lines are dense (strong field)
2. At the sides: Lines spread out (weaker field)
3. Inside the magnet: Lines go from S to N (completing the loop)

Field Strength

The field is:

• STRONGEST at the poles
• WEAKEST in the middle and far away
• Gets weaker as you move away (like how a flashlight is brightest close up)

🔄 Torque on Magnetic Dipole: The Twisting Force

When you put a magnet in another magnetic field, something interesting happens—it wants to twist and align!

What Is Torque?

Torque = A force that makes things rotate or twist

Think of opening a door:

• You push the handle (apply force)
• The door rotates (that’s torque!)

Magnet in a Field

When a bar magnet is placed in an external magnetic field:

graph TD
    A["Magnet at an angle"] -->|Feels torque| B["Magnet tries to rotate"]
    B -->|Until aligned| C["Magnet parallel to field"]
    C -->|Then| D["Torque becomes ZERO"]

The Formula:

τ = M × B × sin(θ)

τ = Torque (twisting force)
M = Magnetic moment of the magnet
B = External magnetic field strength
θ = Angle between magnet and field

When Is Torque Maximum or Zero?

Real Example: A compass needle experiences torque until it aligns with Earth’s field—then it stops rotating!

⚡ Magnetic Dipole Energy: The Energy of Position

A magnet in a magnetic field has potential energy—energy stored because of its position.

Think of It Like a Ball on a Hill

• Ball at top of hill = High potential energy
• Ball at bottom = Low potential energy
• Ball naturally rolls down to lower energy

Magnets do the same thing—they rotate to reach their lowest energy state!

The Energy Formula

U = −M × B × cos(θ)

U = Potential Energy
M = Magnetic moment
B = Magnetic field strength
θ = Angle between magnet and field

Energy at Different Positions

graph TD
    A["θ = 0°<br>Lowest Energy<br>STABLE"]
    B["θ = 90°<br>Zero Energy<br>UNSTABLE"]
    C["θ = 180°<br>Highest Energy<br>VERY UNSTABLE"]

    C -->|Wants to flip| A
    B -->|Wants to rotate| A

Why This Matters

This is how electric motors work!

• Magnets are placed at angles where they have high energy
• They want to rotate to lower energy
• This rotation creates motion
• Motion powers your fan, car, washing machine!

🎯 Quick Summary: The Big Picture

graph TD
    M["🧲 MAGNETISM"] --> P["Poles: N and S"]
    M --> F["Field: Invisible force region"]
    M --> L["Field Lines: Map the field"]
    M --> E["Earth: Giant magnet"]
    M --> D["Dipole: Two poles together"]
    M --> BF["Bar Magnet Field: Specific pattern"]
    M --> T["Torque: Twisting force"]
    M --> EN["Energy: Stored in position"]

🌟 You Did It!

You now understand the invisible superpower that:

• Makes compasses work
• Helps birds navigate
• Powers electric motors
• Sticks notes to refrigerators

From ancient Greeks finding magical rocks to modern technology—magnetism is everywhere, and now YOU understand how it works!

Remember: Every magnet is like having a tiny invisible superhero that can push and pull without touching. Pretty cool, right? 🦸‍♂️🧲
