Damped and Forced Oscillations

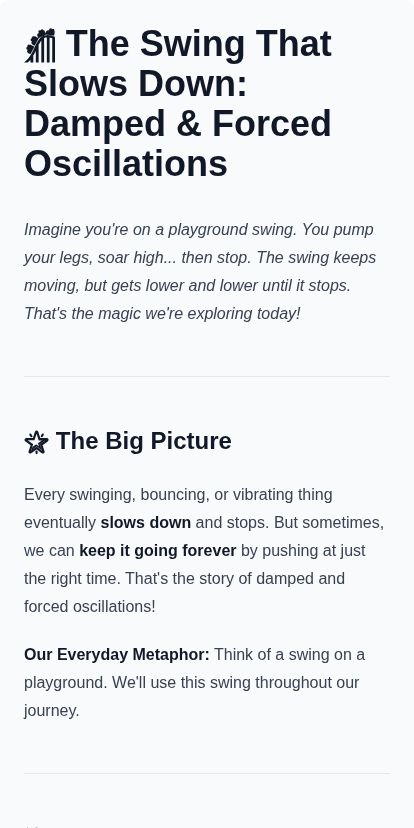

🎢 The Swing That Slows Down: Damped & Forced Oscillations

Imagine you’re on a playground swing. You pump your legs, soar high… then stop. The swing keeps moving, but gets lower and lower until it stops. That’s the magic we’re exploring today!

🌟 The Big Picture

Every swinging, bouncing, or vibrating thing eventually slows down and stops. But sometimes, we can keep it going forever by pushing at just the right time. That’s the story of damped and forced oscillations!

Our Everyday Metaphor: Think of a swing on a playground. We’ll use this swing throughout our journey.

🎯 What is Damped Oscillation?

The Dying Swing

When you stop pumping your legs on a swing, what happens?

The swing keeps moving, but each swing gets smaller and smaller until it stops completely.

Why does this happen?

• Air pushes against you (air resistance)
• The chains rub against the metal hooks (friction)
• Energy “leaks away” with every swing

This is damped oscillation — movement that loses energy over time.

graph TD
    A["🎢 Big Swing"] --> B["Medium Swing"]
    B --> C["Small Swing"]
    C --> D["Tiny Swing"]
    D --> E["🛑 Stopped"]
    style A fill:#ff6b6b
    style B fill:#ffa94d
    style C fill:#ffd43b
    style D fill:#a9e34b
    style E fill:#69db7c

Real-Life Examples

The Three Types of Damping

1. Under-Damped (Most Common)

• The swing keeps swinging, but gets smaller
• Like a guitar string fading away
• Example: A child’s swing after they jump off

2. Over-Damped (Too Much Resistance)

• No swinging at all! Just slow crawl back to center
• Like moving through honey
• Example: A door with a heavy hydraulic closer

3. Critically Damped (The Perfect Amount)

• Returns to center as fast as possible WITHOUT swinging
• No wasted motion
• Example: A perfectly designed car suspension

graph TD
    subgraph Types
    A["Under-Damped<br>🌊 Swings slowly die"]
    B["Critically Damped<br>⚡ Fastest return"]
    C["Over-Damped<br>🐌 Sluggish return"]
    end

The Simple Math (Don’t Worry, It’s Easy!)

The swing’s height follows this pattern:

Height = Starting Height × e^(-bt) × cos(ωt)

What does this mean?

• e^(-bt) = the “shrinking factor” (b = how much damping)
• cos(ωt) = the back-and-forth motion
• Bigger b = faster shrinking = more damping

Think of it like this: Each swing is a “copy” of the last one, but smaller!

🔋 What is Forced Oscillation?

The Pushed Swing

Now imagine someone pushes you on the swing. Every time you swing back, they give you a push.

That’s forced oscillation — adding energy from outside to keep things moving!

Key Idea: Something external provides regular “pushes” to maintain or increase the motion.

The Secret: Timing is Everything!

Not all pushes are equal. Watch:

The frequency of pushing matters a LOT. This leads us to something magical…

graph TD
    A["External Force&lt;br&gt;🖐️ Regular pushes"] --> B{Matches natural<br>frequency?}
    B -->|Yes!| C["🚀 RESONANCE&lt;br&gt;Maximum swing"]
    B -->|No| D["😐 Small effect&lt;br&gt;Minimal swing"]

Real-Life Forced Oscillations

• Your heartbeat: Electrical signals force the heart muscle to pulse
• Radio tuning: Radio waves force electrons to oscillate
• Washing machine: Motor forces the drum to spin

🌈 Resonance: The Magic Frequency

When Pushing Meets Swinging Perfectly

Here’s where the magic happens!

Resonance occurs when you push at EXACTLY the same rate as the swing naturally wants to swing.

It’s like pushing a child on a swing:

• Push too fast → you’re fighting the swing
• Push too slow → you miss the moment
• Push at the PERFECT rate → 🚀 The swing goes higher and higher!

The Resonance Frequency

Every object has a “favorite” frequency — its natural frequency.

When you force at this exact frequency, resonance happens!

Why Resonance is Amazing (and Sometimes Dangerous!)

Amazing Uses:

• 📻 Radio tuning: Your radio resonates at exactly one station’s frequency
• 🎸 Musical instruments: Body amplifies certain frequencies
• 🏥 MRI machines: Make atoms resonate to create images

Dangerous Resonance:

• 🌉 Bridges can collapse: Soldiers break step crossing bridges!
• 🍷 Glass shatters: Singers can break wine glasses with the right note
• 🏢 Buildings during earthquakes: If quake matches building’s frequency

graph LR
    A["Resonance<br>🎯 Force = Natural Freq"] --> B["Good Uses"]
    A --> C["Dangers"]
    B --> D["📻 Radio tuning"]
    B --> E["🎸 Music"]
    B --> F["🏥 Medical imaging"]
    C --> G["🌉 Bridge collapse"]
    C --> H["🍷 Breaking glass"]
    C --> I["🏢 Building damage"]

The Classic Example: Breaking a Wine Glass

Step 1: Find the glass’s natural frequency (tap it, listen to the note)

Step 2: Sing or play that exact note very loudly

Step 3: The glass vibrates more and more (resonance!)

Step 4: If loud enough → 💥 CRACK!

This really works! Opera singers have done it for centuries.

🔗 How It All Connects

Let’s put everything together with our swing analogy:

The Energy Story

1. Damped: Energy LEAVES the system (heat, sound, friction)
2. Forced: Energy ENTERS the system (external pushes)
3. Resonance: Maximum energy transfer when frequencies match!

🎯 Quick Summary

Damped Oscillations

• Motion that gradually dies down
• Energy lost to friction, air resistance
• Three types: under-damped, over-damped, critically damped

Forced Oscillations

• External force keeps oscillation going
• Energy added from outside
• Response depends on forcing frequency

Resonance

• Forcing frequency = natural frequency
• Maximum energy transfer
• Can be useful OR dangerous!

💡 Why This Matters

Understanding these concepts helps us:

• Design safer buildings that don’t collapse in earthquakes
• Create better musical instruments with beautiful resonance
• Build comfortable cars with perfect shock absorbers
• Tune into radio stations at exact frequencies
• Protect bridges from dangerous vibrations

Next time you’re on a swing, try this: stop pumping and watch the damped oscillation. Then pump at different rates — when you match your natural swing frequency, you’ll feel the power of resonance! 🎢✨
