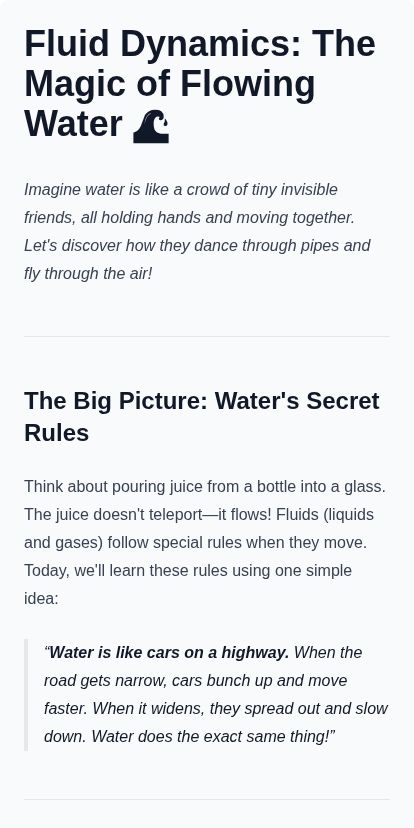

Fluid Dynamics: The Magic of Flowing Water 🌊
Imagine water is like a crowd of tiny invisible friends, all holding hands and moving together. Let’s discover how they dance through pipes and fly through the air!
The Big Picture: Water’s Secret Rules
Think about pouring juice from a bottle into a glass. The juice doesn’t teleport—it flows! Fluids (liquids and gases) follow special rules when they move. Today, we’ll learn these rules using one simple idea:
Water is like cars on a highway. When the road gets narrow, cars bunch up and move faster. When it widens, they spread out and slow down. Water does the exact same thing!
1. Flow Types: How Water Moves
Water can move in two very different ways—like the difference between a calm river and a wild waterfall.
Streamline (Laminar) Flow 🎀
Imagine ribbons of water flowing side by side, never crossing each other. Each ribbon stays in its lane, smooth and peaceful.
Real Life Example:
- Honey dripping slowly from a spoon
- Blood flowing through tiny blood vessels
- Slow water from a faucet
Turbulent Flow 🌀
Now imagine a washing machine! Water spins, mixes, and creates swirls everywhere. Ribbons cross and tangle.
Real Life Example:
- Water rushing over rocks in a river
- Smoke rising from a candle (watch it twist!)
- Fast water from a fire hose
graph TD A["Fluid Flow"] --> B["Laminar Flow"] A --> C["Turbulent Flow"] B --> D["Smooth & Orderly"] B --> E["Low Speed"] C --> F["Chaotic & Mixing"] C --> G["High Speed"]
The Magic Number: Reynolds Number
Scientists use a special number to predict which type of flow will happen:
- Below 2000 → Laminar (smooth)
- Above 4000 → Turbulent (chaotic)
- Between → It could be either!
2. Equation of Continuity: The “No Cheating” Rule
Here’s a magical fact: Water cannot appear from nowhere or disappear into nothing.
If water enters a pipe, the same amount must come out the other end. But here’s the fun part—if the pipe gets narrower, the water speeds up!
The Formula
$A_1 \times v_1 = A_2 \times v_2$
Where:
- A = Area (how wide the pipe is)
- v = Velocity (how fast water moves)
The Garden Hose Trick 🏡
Ever put your thumb over a garden hose? The opening gets smaller (A decreases), so water shoots out faster (v increases)!
| Pipe Section | Area | Speed |
|---|---|---|
| Wide part | Big | Slow |
| Narrow part | Small | Fast |
Simple Example:
- Water flows at 2 m/s through a pipe with area 10 cm²
- The pipe narrows to 5 cm²
- New speed = (10 × 2) ÷ 5 = 4 m/s
The water doubled its speed because the area became half!
3. Bernoulli’s Equation: The Energy Balance
Daniel Bernoulli discovered something amazing in 1738: Fast-moving fluids have less pressure.
Think of it like running. When you run fast, you don’t have time to push hard on things around you. Water is the same!
The Formula
$P + \frac{1}{2}\rho v^2 + \rho gh = \text{constant}$
| Symbol | Meaning | Think of it as… |
|---|---|---|
| P | Pressure | How hard water pushes |
| ρ | Density | How heavy the fluid is |
| v | Velocity | How fast it moves |
| g | Gravity | 9.8 m/s² (Earth’s pull) |
| h | Height | How high up it is |
The Three-Way Trade-Off
Bernoulli says fluids have three types of energy, and they constantly trade:
graph TD A["Total Energy"] --> B["Pressure Energy"] A --> C["Kinetic Energy"] A --> D["Potential Energy"] B --> E["Pushing Power"] C --> F["Speed Power"] D --> G["Height Power"]
Key Insight: When one type increases, another must decrease!
4. Applications of Bernoulli: Real World Magic ✨
Why Planes Fly 🛫
An airplane wing is curved on top and flat on bottom. Air moves faster over the curved top, creating lower pressure. Higher pressure below pushes the plane UP!
Why Shower Curtains Attack You 🚿
When you shower, fast-moving water creates low pressure inside. Higher pressure outside pushes the curtain toward you. It’s not a ghost—it’s physics!
Why Two Ships Shouldn’t Get Too Close ⛴️
When ships pass close together, water speeds up between them (narrow space). This creates low pressure, and the ships get pulled toward each other!
Spray Bottles and Perfume 💨
When you squeeze air through a narrow tube, it speeds up and creates low pressure. This sucks liquid up from the bottle and turns it into a spray!
5. Venturi Meter: The Speed Detective 🔍
A Venturi meter is a clever device that measures how fast fluid flows by using Bernoulli’s principle.
How It Works
- Fluid enters a wide pipe
- Pipe narrows in the middle (throat)
- Two pressure gauges measure pressure at wide and narrow parts
- The pressure difference tells us the speed!
graph LR A["Wide Section<br>High Pressure<br>Low Speed"] --> B["Narrow Throat<br>Low Pressure<br>High Speed"] B --> C["Wide Section<br>High Pressure<br>Low Speed"]
The Venturi Formula
$v_1 = \sqrt{\frac{2(P_1 - P_2)}{\rho(A_1^2/A_2^2 - 1)}}$
Simple Example: Imagine water flows through a Venturi meter. At the wide part, pressure is 100,000 Pa. At the narrow throat, it drops to 80,000 Pa. The pressure drop of 20,000 Pa tells us exactly how fast the water is moving!
Real Uses:
- Car carburetors mix fuel with air
- Medical devices measure blood flow
- Industrial pipes monitor liquid flow
6. Torricelli’s Theorem: The Draining Tank 🛁
Evangelista Torricelli asked: “How fast does water shoot out of a hole in a tank?”
His brilliant answer: It’s the same speed the water would have if it fell from the top of the tank!
The Formula
$v = \sqrt{2gh}$
Where:
- v = Speed of water leaving the hole
- g = Gravity (9.8 m/s²)
- h = Height of water above the hole
The Leaky Bucket Experiment 🪣
Poke holes at different heights in a bucket filled with water:
- Top hole: Water barely dribbles out (small h)
- Bottom hole: Water shoots far! (large h)
Simple Example:
- Water tank is 5 meters deep
- Hole at the bottom
- Exit speed = √(2 × 9.8 × 5) = √98 ≈ 9.9 m/s
That’s about 35 km/h—like a bicycle at full speed!
graph TD A["Water Surface"] --> B["Height h"] B --> C["Hole in Tank"] C --> D["Water Exit Speed<br>v = √2gh"]
Real Applications:
- Water towers provide pressure to homes
- Dams release water with tremendous force
- Fire sprinklers spray water when triggered
The Complete Picture: Everything Connected
All these concepts work together like a symphony:
graph LR A["Fluid Dynamics"] --> B["Flow Types"] A --> C["Continuity"] A --> D["Bernoulli"] B --> E["Laminar vs Turbulent"] C --> F["A₁v₁ = A₂v₂"] D --> G["P + ½ρv² + ρgh = const"] D --> H["Venturi Meter"] D --> I[Torricelli's Theorem] H --> J["Measures Flow Speed"] I --> K["v = √2gh"]
Quick Summary Table
| Concept | Key Idea | Formula |
|---|---|---|
| Flow Types | Smooth vs Chaotic | Reynolds Number |
| Continuity | What goes in must come out | A₁v₁ = A₂v₂ |
| Bernoulli | Fast = Low Pressure | P + ½ρv² + ρgh = const |
| Venturi Meter | Measures speed via pressure | Uses Bernoulli |
| Torricelli | Drain speed = fall speed | v = √2gh |
Why This Matters to YOU 💡
Understanding fluid dynamics helps explain:
- Why your heart pumps blood efficiently
- How planes stay in the sky
- Why water pressure is stronger on ground floors
- How spray bottles, carburetors, and chimneys work
You now understand the invisible dance of fluids all around you. Every time you see water flowing, you’ll know the secret physics behind it!
Remember: Fluids are like friendly crowds—they follow rules, share energy, and never cheat. Master these rules, and you’ll understand one of nature’s most beautiful dances! 🌊
