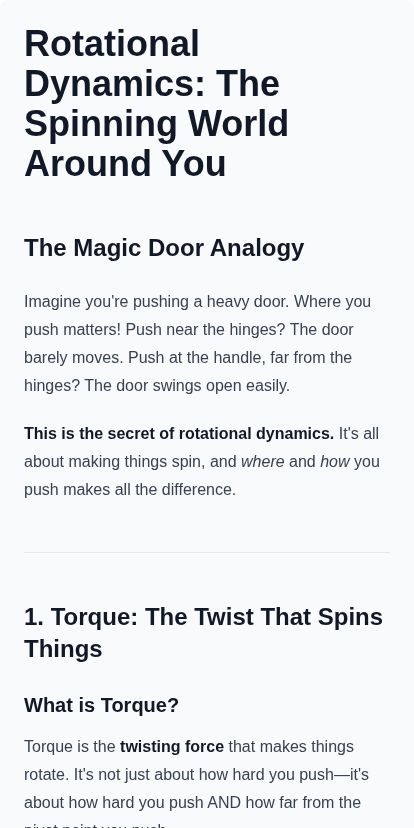

Rotational Dynamics: The Spinning World Around You
The Magic Door Analogy
Imagine you’re pushing a heavy door. Where you push matters! Push near the hinges? The door barely moves. Push at the handle, far from the hinges? The door swings open easily.
This is the secret of rotational dynamics. It’s all about making things spin, and where and how you push makes all the difference.
1. Torque: The Twist That Spins Things
What is Torque?
Torque is the twisting force that makes things rotate. It’s not just about how hard you push—it’s about how hard you push AND how far from the pivot point you push.
Think of it like this: Opening a door requires torque. You apply a force, but the magic happens because of where you apply it.
The Formula
τ = r × F × sin(θ)
- τ (tau) = Torque (measured in Newton-meters, Nm)
- r = Distance from pivot point (the “lever arm”)
- F = Force applied
- θ = Angle between force and lever arm
Simple Example
You push a door with 10 N of force at the handle, which is 0.8 m from the hinges. You push perpendicular to the door (θ = 90°).
τ = 0.8 m × 10 N × sin(90°)
τ = 0.8 × 10 × 1
τ = 8 Nm
The door feels your 8 Nm twist!
Key Insight
Torque has a direction:
- Counterclockwise = Positive (+)
- Clockwise = Negative (−)
2. Couple: Two Forces, One Spin
What is a Couple?
A couple is a special team of two forces. They’re equal in strength, opposite in direction, and don’t share the same line. Together, they create pure rotation—no sliding, just spinning.
Real-Life Example
Turning a steering wheel:
- Your left hand pushes up
- Your right hand pushes down
- Same force, opposite directions
- The wheel spins smoothly!
The Formula
τ = F × d
Where d is the distance between the two forces.
Example
You grip a steering wheel with both hands, 30 cm apart. Each hand applies 15 N.
τ = 15 N × 0.3 m = 4.5 Nm
Pure rotation, no translation!
3. Rotational Equilibrium: When Spinning Stops
What is Rotational Equilibrium?
An object is in rotational equilibrium when all the torques cancel out. The total torque equals zero.
Στ = 0
Think of a seesaw. When it’s perfectly balanced, neither side goes up or down. All the twisting forces cancel each other.
Example
A 2-meter seesaw has a 30 kg child sitting 0.8 m from the center on one side. Where should a 40 kg child sit on the other side to balance it?
Torque from child 1 = Torque from child 2
30 kg × 9.8 × 0.8 m = 40 kg × 9.8 × d
235.2 = 392 × d
d = 0.6 m from the center
Balance achieved at 0.6 m!
4. Torque-Acceleration Relation: Newton’s Second Law Goes Spinning
The Connection
Just like F = ma for straight-line motion, rotational motion has its own version:
τ = I × α
- τ = Net torque
- I = Moment of inertia (resistance to spinning)
- α = Angular acceleration
What Does This Mean?
More torque = faster spinning (if I stays the same) More moment of inertia = slower spinning (for same torque)
Example
A merry-go-round has a moment of inertia of 500 kg·m². You apply a torque of 100 Nm. What’s the angular acceleration?
α = τ / I
α = 100 Nm / 500 kg·m²
α = 0.2 rad/s²
The merry-go-round speeds up at 0.2 rad/s² each second!
5. Angular Momentum: The Spinning Bank Account
What is Angular Momentum?
Angular momentum is how much “spin” an object has stored. It’s like momentum for rotation.
L = I × ω
- L = Angular momentum
- I = Moment of inertia
- ω = Angular velocity
Think of It Like This
A spinning top has angular momentum. A planet orbiting the sun has angular momentum. Even you, when you spin around, have angular momentum!
Example
A figure skater spins with moment of inertia 2.5 kg·m² at 4 rad/s.
L = 2.5 × 4 = 10 kg·m²/s
The skater has 10 kg·m²/s of angular momentum stored!
6. Angular Momentum Conservation: The Spinner’s Secret
The Magic Rule
When no external torque acts on a system, angular momentum stays the same:
L_initial = L_final
I₁ω₁ = I₂ω₂
The Figure Skater’s Trick
When a figure skater pulls in their arms:
- Their moment of inertia (I) decreases
- To keep L constant, angular velocity (ω) increases
- They spin faster!
Example
A skater starts with arms extended:
- I₁ = 4 kg·m², ω₁ = 2 rad/s
They pull their arms in:
- I₂ = 1.5 kg·m²
Find the new spin rate:
I₁ω₁ = I₂ω₂
4 × 2 = 1.5 × ω₂
8 = 1.5 × ω₂
ω₂ = 5.33 rad/s
They spin 2.7 times faster!
7. Rotational Kinetic Energy: The Energy of Spinning
What is It?
A spinning object has energy! This energy comes from its rotation.
KE_rot = ½ × I × ω²
Comparison to Linear Kinetic Energy
| Linear Motion | Rotational Motion |
|---|---|
| KE = ½mv² | KE = ½Iω² |
| m = mass | I = moment of inertia |
| v = velocity | ω = angular velocity |
Example
A spinning bicycle wheel:
- Moment of inertia: 0.25 kg·m²
- Angular velocity: 20 rad/s
KE_rot = ½ × 0.25 × 20²
KE_rot = ½ × 0.25 × 400
KE_rot = 50 J
The spinning wheel stores 50 Joules of energy!
Rolling Objects
A rolling ball has BOTH types of energy:
Total KE = ½mv² + ½Iω²
= Translational + Rotational
8. Work and Power in Rotation
Work in Rotation
When a torque rotates an object through an angle, work is done:
W = τ × θ
- W = Work (Joules)
- τ = Torque (Nm)
- θ = Angle rotated (radians)
Example
A motor applies 50 Nm of torque to rotate a shaft through 10 complete revolutions.
θ = 10 × 2π = 62.83 radians
W = 50 × 62.83 = 3141.5 J
The motor does about 3142 Joules of work!
Power in Rotation
Power is how fast work is done:
P = τ × ω
- P = Power (Watts)
- τ = Torque (Nm)
- ω = Angular velocity (rad/s)
Example
An engine produces 200 Nm of torque while rotating at 300 rad/s.
P = 200 × 300 = 60,000 W = 60 kW
The engine produces 60 kilowatts of power!
Putting It All Together
graph TD A["Force Applied"] --> B["Creates Torque τ = rF sin θ"] B --> C{Net Torque?} C -->|Zero| D["Rotational Equilibrium"] C -->|Non-zero| E["Angular Acceleration τ = Iα"] E --> F["Changes Angular Momentum L = Iω"] F --> G["Stores Rotational KE = ½Iω²"] G --> H["Work Done W = τθ"] H --> I["Power Delivered P = τω"]
Summary Table
| Concept | Formula | Key Idea |
|---|---|---|
| Torque | τ = rF sin(θ) | Twisting force |
| Couple | τ = F × d | Two forces, pure spin |
| Equilibrium | Στ = 0 | Balanced torques |
| Torque-Acceleration | τ = Iα | Newton’s 2nd for rotation |
| Angular Momentum | L = Iω | Spin stored |
| Conservation | I₁ω₁ = I₂ω₂ | Spin stays constant |
| Rotational KE | ½Iω² | Energy of spinning |
| Work | W = τθ | Torque × angle |
| Power | P = τω | Torque × angular speed |
You’ve Got This!
Rotational dynamics might seem complex at first, but remember:
- Torque is just a twisting force
- Everything spins when torques don’t balance
- Angular momentum loves to be conserved
- Spinning things have energy and do work
From opening doors to ice skaters to car engines—rotational dynamics is everywhere. Now you see the spinning world with new eyes!
