Carnot Engine

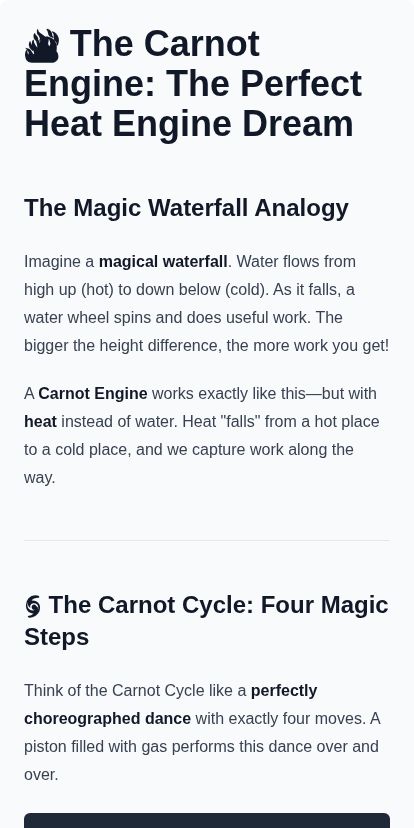

🔥 The Carnot Engine: The Perfect Heat Engine Dream

The Magic Waterfall Analogy

Imagine a magical waterfall. Water flows from high up (hot) to down below (cold). As it falls, a water wheel spins and does useful work. The bigger the height difference, the more work you get!

A Carnot Engine works exactly like this—but with heat instead of water. Heat “falls” from a hot place to a cold place, and we capture work along the way.

🌀 The Carnot Cycle: Four Magic Steps

Think of the Carnot Cycle like a perfectly choreographed dance with exactly four moves. A piston filled with gas performs this dance over and over.

graph TD
    A["1️⃣ ISOTHERMAL EXPANSION<br>Gas absorbs heat, expands slowly"] --> B["2️⃣ ADIABATIC EXPANSION<br>Gas expands more, cools down on its own"]
    B --> C["3️⃣ ISOTHERMAL COMPRESSION<br>Gas releases heat, gets squeezed"]
    C --> D["4️⃣ ADIABATIC COMPRESSION<br>Gas squeezed more, heats up on its own"]
    D --> A

Step 1: Isothermal Expansion (Hot Sponge Absorbing)

• The gas touches a hot reservoir (like touching a hot stove)
• It absorbs heat and expands
• Temperature stays the same (isothermal = same temperature)
• Example: A balloon on a hot day slowly getting bigger while staying warm

Step 2: Adiabatic Expansion (Coasting Downhill)

• No more heat coming in or going out (adiabatic = no heat transfer)
• The gas keeps expanding on its own
• As it expands, it cools down
• Example: When you let air out of a bike pump, it feels cold!

Step 3: Isothermal Compression (Cold Squeeze)

• The gas touches a cold reservoir (like an ice bath)
• It gets squeezed smaller and releases heat
• Temperature stays constant at the cold level
• Example: Squeezing a balloon while keeping it in ice water

Step 4: Adiabatic Compression (Heating Up Naturally)

• No heat exchange again
• The gas gets squeezed more
• As it compresses, it heats up on its own
• Example: A bike pump getting warm when you push hard
• Returns to starting point, ready to repeat!

⚙️ Carnot Engine Operation: How It Actually Works

The Three Key Parts

The Perfect Sequence

1. Gas starts hot and compressed
2. Touches hot reservoir → absorbs heat Q_H
3. Expands and does work → pushes piston
4. Touches cold reservoir → dumps waste heat Q_C
5. Gets compressed back → cycle repeats!

Simple Example: Imagine a balloon inside a tube:

• Put it on a hot plate → it expands, pushes a toy car
• Move it to an ice pack → it shrinks, car moves back
• Repeat → continuous motion!

📊 Carnot Efficiency: The Speed Limit of Engines

Here’s the big secret that Carnot discovered: No engine can ever be 100% efficient!

The Magic Formula

Efficiency = 1 - (T_cold / T_hot)

Where temperatures are in Kelvin (add 273 to Celsius)

Why This Matters

Simple Example: Your Toy Engine

• Hot reservoir: Boiling water at 373 K (100°C)
• Cold reservoir: Room at 293 K (20°C)
• Maximum possible efficiency = 1 - (293/373) = 21.4%

That means at BEST, only 21% of heat becomes useful work!

Why can’t we do better? Think of our waterfall again. No matter how good your water wheel, some water always reaches the bottom. You can’t capture ALL the falling energy. Same with heat—some always escapes to the cold side.

🏆 Carnot Theorem: The Ultimate Rule

Carnot proved two amazing things that EVERY engine must obey:

Rule #1: Nothing Beats Carnot

No heat engine operating between two temperatures can be MORE efficient than a Carnot engine.

Example: If Carnot efficiency says maximum 40%, your car engine might achieve 25-30%, but NEVER 50%.

Rule #2: All Perfect Engines Are Equal

All reversible engines operating between the same two temperatures have the SAME efficiency.

Example: Whether you use helium, air, or any other gas—if the cycle is reversible and uses the same hot/cold temperatures, efficiency is identical!

graph TD
    subgraph "The Efficiency Ladder"
    A["Carnot Efficiency: THE MAXIMUM<br>🏆 Theoretical Limit"]
    B["Reversible Engine<br>⭐ Equals Carnot"]
    C["Real-World Engines<br>🔧 Always Below Carnot"]
    D["Impossible Zone<br>❌ Can Never Exist"]
    end
    A --- B
    B --> C
    D -.-> A
    style D fill:#ffcccc
    style A fill:#90EE90

Why Is This So Important?

1. It sets a goal → Engineers know the maximum they can aim for
2. It saves money → No point trying to beat the impossible
3. It explains nature → Heat naturally flows from hot to cold, not the other way

🎯 Key Takeaways

✅ Carnot Cycle = 4 steps (2 isothermal + 2 adiabatic)

✅ Carnot Engine = Ideal engine with hot source, cold sink, working gas

✅ Carnot Efficiency = 1 - (T_cold / T_hot) — the maximum possible

✅ Carnot Theorem = No engine beats Carnot; all reversible engines at same temps are equal

🧠 Remember It Forever!

The Waterfall Rule: Heat is like water falling. The taller the waterfall (bigger temperature difference), the more work you can extract. But water ALWAYS reaches the bottom—some heat ALWAYS goes to the cold side.

The Four-Beat Dance: Expand hot → Expand cool → Compress cold → Compress hot → Repeat!

You’ve just learned the most important concept in thermodynamics. Every power plant, every car engine, every refrigerator follows these rules. Now you know the secret that engineers spend years studying! 🚀
