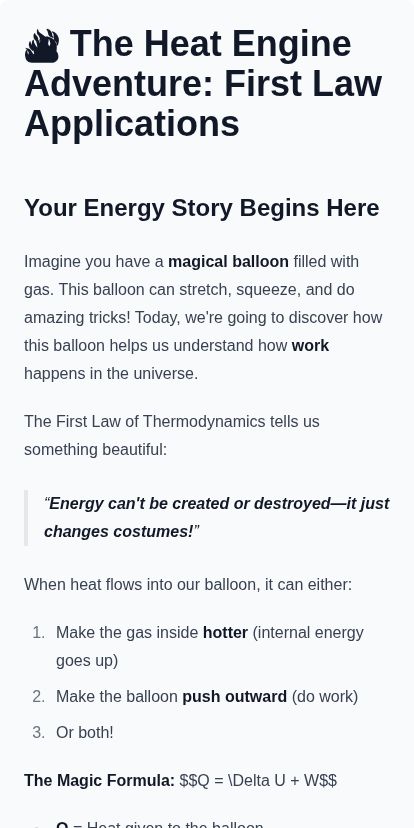

🔥 The Heat Engine Adventure: First Law Applications
Your Energy Story Begins Here
Imagine you have a magical balloon filled with gas. This balloon can stretch, squeeze, and do amazing tricks! Today, we’re going to discover how this balloon helps us understand how work happens in the universe.
The First Law of Thermodynamics tells us something beautiful:
Energy can’t be created or destroyed—it just changes costumes!
When heat flows into our balloon, it can either:
- Make the gas inside hotter (internal energy goes up)
- Make the balloon push outward (do work)
- Or both!
The Magic Formula: $Q = \Delta U + W$
- Q = Heat given to the balloon
- ΔU = Change in internal energy
- W = Work done by the balloon
Now, let’s explore five different adventures our balloon can go on!
🌡️ Isothermal Process: The Temperature Keeper
What’s Happening?
Iso means “same” and thermal means “temperature.”
Picture this: You’re slowly squeezing a balloon while it sits in a bathtub of warm water. The balloon changes size, but the water keeps it at the exact same temperature!
The Simple Idea
When temperature stays constant:
- The gas does work (pushes or gets pushed)
- Heat flows in or out to keep temperature steady
- Internal energy doesn’t change (ΔU = 0)
So our magic formula becomes: $Q = W$
All the heat you add becomes work. All the work done on it becomes heat!
The Work Formula
$W = nRT \ln\left(\frac{V_f}{V_i}\right)$
Or in pressure terms: $W = nRT \ln\left(\frac{P_i}{P_f}\right)$
🎈 Real Example
A gas at 300 K expands from 2 liters to 6 liters at constant temperature.
Work done = nRT × ln(6/2) = nRT × ln(3)
Since ln(3) ≈ 1.1, the gas does positive work pushing outward!
📊 What It Looks Like
graph TD A["Start: High Pressure<br>Small Volume"] --> B["Add Heat<br>Temperature Stays Same"] B --> C["Gas Expands<br>Does Work"] C --> D["End: Low Pressure<br>Large Volume"]
On a P-V Graph: A smooth curve called a hyperbola (PV = constant)
📏 Isobaric Process: The Pressure Keeper
What’s Happening?
Iso means “same” and baric means “pressure.”
Imagine a pot with a heavy lid. As you heat the water, steam pushes up—but the lid’s weight keeps the pressure constant. The steam just lifts the lid higher!
The Simple Idea
When pressure stays constant:
- Volume can freely change
- Heat goes into both work AND internal energy
$Q = \Delta U + P\Delta V$
The Work Formula (Super Easy!)
$W = P \times \Delta V = P(V_f - V_i)$
Just pressure times the change in volume. That’s it!
🍳 Real Example
Steam in a cylinder at 100,000 Pa (1 atm) expands from 0.001 m³ to 0.003 m³.
Work done = 100,000 × (0.003 - 0.001) Work done = 100,000 × 0.002 = 200 Joules
The steam did 200 J of work pushing the piston up!
📊 What It Looks Like
graph TD A["Start: Small Volume"] --> B["Add Heat at Constant Pressure"] B --> C["Volume Increases<br>Temperature Rises"] C --> D["End: Large Volume<br>Same Pressure"]
On a P-V Graph: A straight horizontal line
🔒 Isochoric Process: The Volume Keeper
What’s Happening?
Iso means “same” and choric means “volume.”
Think of a sealed steel tank. You can heat it up or cool it down, but the walls don’t budge. The gas is trapped in the same space!
The Simple Idea
When volume can’t change:
- No expansion or compression
- The gas can’t push anything
- ALL heat goes into internal energy
The Work Formula (Even Easier!)
$W = 0$
Zero! No work at all!
Since W = P × ΔV and ΔV = 0: $W = P \times 0 = 0$
So the First Law becomes: $Q = \Delta U$
Every bit of heat makes the gas hotter (or cooling removes internal energy).
🫙 Real Example
You heat a sealed can of gas. You add 500 J of heat.
Work done = 0 J (can’t expand) Change in internal energy = 500 J (all heat stored!)
The temperature rises, pressure goes up, but volume stays put.
📊 What It Looks Like
graph TD A["Start: Low Pressure<br>Fixed Volume"] --> B["Add Heat"] B --> C["Temperature Rises<br>Pressure Increases"] C --> D["End: High Pressure<br>Same Volume"]
On a P-V Graph: A straight vertical line
🚫🔥 Adiabatic Process: The Heat Keeper (Keeper-Outer!)
What’s Happening?
Adiabatic comes from Greek meaning “impassable.”
Imagine wrapping your balloon in the world’s best insulation—like a super thermos. No heat can sneak in or out! But the gas can still be compressed or expanded.
The Simple Idea
When no heat flows (Q = 0):
- Work must come from (or go into) internal energy
- Compress the gas → it heats up!
- Expand the gas → it cools down!
The First Law becomes: $0 = \Delta U + W$ $W = -\Delta U$
The Work Formula
$W = \frac{P_i V_i - P_f V_f}{\gamma - 1}$
Or using temperatures: $W = \frac{nR(T_i - T_f)}{\gamma - 1}$
Where γ (gamma) is the heat capacity ratio (about 1.4 for air).
🚲 Real Example
A bicycle pump! When you push down fast:
- Air compresses quickly (no time for heat to escape)
- Temperature shoots up
- That’s why the pump gets hot!
If you have air at 300 K compressed from 1 L to 0.5 L adiabatically: The final temperature will be HIGHER than 300 K!
📊 What It Looks Like
graph TD A["Start: Low Pressure<br>Large Volume"] --> B["Compress Quickly<br>No Heat Escapes"] B --> C["Volume Decreases<br>Temperature RISES"] C --> D["End: High Pressure<br>Small Volume<br>HOT!"]
On a P-V Graph: A steeper curve than isothermal (falls faster)
🔗 Adiabatic Relations: The Magic Equations
The Three Golden Rules
For adiabatic processes, pressure, volume, and temperature dance together in special ways:
Relation 1: Temperature & Volume
$T V^{\gamma-1} = \text{constant}$
What it means: When volume goes down, temperature goes up!
Relation 2: Pressure & Volume
$P V^{\gamma} = \text{constant}$
What it means: Pressure rises faster than in isothermal compression.
Relation 3: Temperature & Pressure
$T^{\gamma} P^{1-\gamma} = \text{constant}$
Or written another way: $\frac{T^{\gamma}}{P^{\gamma-1}} = \text{constant}$
🎯 Quick Example
For air (γ = 1.4), if you halve the volume adiabatically:
Temperature change: $T_f = T_i \times 2^{0.4} ≈ T_i \times 1.32$
Temperature increases by 32%!
Pressure change: $P_f = P_i \times 2^{1.4} ≈ P_i \times 2.64$
Pressure more than doubles!
Why γ Matters
| Gas Type | γ Value | Examples |
|---|---|---|
| Monoatomic | 5/3 ≈ 1.67 | Helium, Argon |
| Diatomic | 7/5 = 1.4 | Air, N₂, O₂ |
| Polyatomic | ~1.3 | CO₂, H₂O vapor |
🗺️ The Complete Map
graph TD A["First Law Processes"] --> B["Isothermal<br>T = constant"] A --> C["Isobaric<br>P = constant"] A --> D["Isochoric<br>V = constant"] A --> E["Adiabatic<br>Q = 0"] B --> B1["W = nRT ln V₂/V₁"] C --> C1["W = PΔV"] D --> D1["W = 0"] E --> E1["W = -ΔU"]
🎯 The Big Picture Summary
| Process | What’s Constant | Work Done | Heat Flow |
|---|---|---|---|
| Isothermal | Temperature | W = nRT ln(V₂/V₁) | Q = W |
| Isobaric | Pressure | W = PΔV | Q = ΔU + W |
| Isochoric | Volume | W = 0 | Q = ΔU |
| Adiabatic | No heat flow | W = -ΔU | Q = 0 |
💡 You Did It!
You now understand the four main ways gases can transform:
- Isothermal - Keep temperature steady, trade heat for work
- Isobaric - Keep pressure steady, expand freely
- Isochoric - Keep volume locked, build up pressure
- Adiabatic - No heat allowed, work changes temperature
These aren’t just textbook ideas—they’re how engines run, refrigerators cool, and weather happens!
Every time you:
- Use a bicycle pump (adiabatic compression)
- Boil water in an open pot (isobaric heating)
- Heat a sealed can (isochoric heating)
- See clouds form in the sky (adiabatic cooling)
…you’re watching the First Law in action!
Energy never disappears. It just goes on new adventures! 🎈🔥
