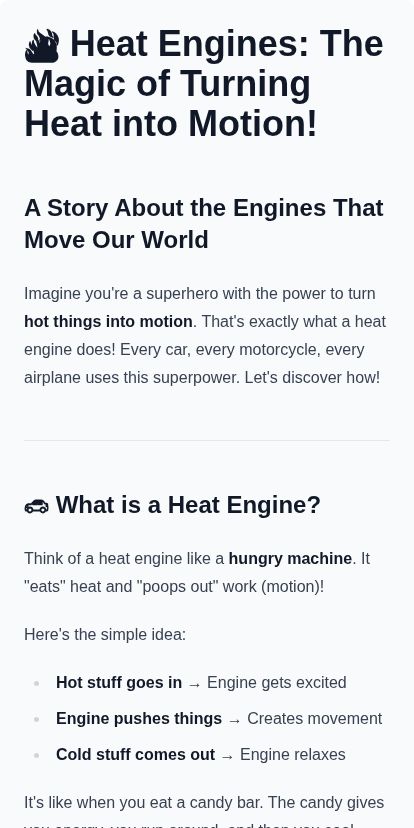

🔥 Heat Engines: The Magic of Turning Heat into Motion!
A Story About the Engines That Move Our World
Imagine you’re a superhero with the power to turn hot things into motion. That’s exactly what a heat engine does! Every car, every motorcycle, every airplane uses this superpower. Let’s discover how!
🚗 What is a Heat Engine?
Think of a heat engine like a hungry machine. It “eats” heat and “poops out” work (motion)!
Here’s the simple idea:
- Hot stuff goes in → Engine gets excited
- Engine pushes things → Creates movement
- Cold stuff comes out → Engine relaxes
It’s like when you eat a candy bar. The candy gives you energy, you run around, and then you cool down!
🎯 The Two Champions: Otto vs Diesel
Today we meet two superhero engines. They look similar but have different superpowers.
graph TD A["🔥 Heat Engines"] --> B["Otto Cycle"] A --> C["Diesel Cycle"] B --> D["Your Family Car"] C --> E["Big Trucks & Buses"]
🏎️ The Otto Cycle: The Spark Champion
Named After a Real Hero!
In 1876, a clever man named Nikolaus Otto invented this engine. It powers most cars today!
The Four Magic Steps
Imagine a piston as a sliding drawer inside a tube. Here’s what happens:
Step 1: INTAKE (The Big Breath) 🌬️
The piston slides down like opening a drawer. Air and fuel rush in!
Like this: You take a deep breath before blowing birthday candles.
Step 2: COMPRESSION (The Big Squeeze) 💪
The piston slides up. It squeezes the air-fuel mix into a tiny space.
Like this: Squishing a balloon with your hands. It gets smaller and HOTTER!
Step 3: POWER (The Big Bang!) 💥
A tiny spark plug makes a spark. BOOM! The fuel explodes!
The explosion pushes the piston down super hard. This is where the engine makes power!
Like this: Popping a balloon. The air rushes out with force!
Step 4: EXHAUST (The Big Puff) 💨
The piston goes up again. It pushes the used-up gases out.
Like this: Blowing out those birthday candles after your big breath!
🔑 Otto’s Secret Weapon: The Spark!
The Otto engine uses a spark plug to start the explosion.
⚡ SPARK + FUEL = POWER!
This is called spark ignition (SI).
Real Example: Your mom’s Honda Civic, your neighbor’s Toyota, and most motorcycles use Otto engines!
📊 Otto’s Report Card
| Feature | Otto Engine |
|---|---|
| Fuel | Gasoline (petrol) |
| Ignition | Spark plug ⚡ |
| Compression | Lower (8:1 to 12:1) |
| Speed | Very fast! 🏎️ |
| Power | Good for small vehicles |
| Noise | Quieter 🤫 |
🚛 The Diesel Cycle: The Pressure Champion
Rudolf Diesel’s Brilliant Idea!
In 1893, Rudolf Diesel thought: “What if we squeeze air SO HARD that it gets super hot and ignites the fuel itself?”
No spark needed! Just SQUEEZE!
The Four Magic Steps (Diesel Style)
Step 1: INTAKE (Air Only!) 🌬️
The piston goes down. But wait! Only pure air comes in. No fuel yet!
Like this: Breathing in clean air, no food in your mouth!
Step 2: COMPRESSION (The Super Squeeze!) 💪💪💪
The piston squeezes the air MUCH harder than Otto.
So hard that the air gets SUPER HOT (600°C or more)!
Like this: When you pump a bicycle pump really fast, the end gets hot!
Step 3: POWER (The Hot Injection!) 🔥
Now fuel sprays into the super-hot air. It’s so hot that the fuel catches fire automatically!
No spark needed! The heat does all the work!
Like this: Throwing paper into a campfire. It catches fire by itself!
Step 4: EXHAUST (Bye Bye Smoke!) 💨
Same as Otto. Push out the used gases.
🔑 Diesel’s Secret Weapon: The Squeeze!
Diesel doesn’t need a spark. It squeezes air so hard it gets hot enough to light the fuel!
SUPER SQUEEZE + HOT AIR + FUEL = POWER!
This is called compression ignition (CI).
Real Example: School buses, delivery trucks, trains, and big ships use Diesel engines!
📊 Diesel’s Report Card
| Feature | Diesel Engine |
|---|---|
| Fuel | Diesel fuel |
| Ignition | Compression only 🔥 |
| Compression | Much higher (15:1 to 22:1) |
| Speed | Slower but stronger 🐘 |
| Power | Great for heavy loads |
| Noise | Louder 📢 |
⚖️ The Ultimate Showdown: Otto vs Diesel!
Who Wins?
The answer is… BOTH WIN! They’re just good at different things!
graph TD A["Need to Choose?"] --> B{What's Important?} B -->|Speed & Smooth| C["Otto Wins! 🏎️"] B -->|Power & Fuel Savings| D["Diesel Wins! 🚛"] B -->|Small Vehicle| C B -->|Heavy Loads| D
🆚 Side-by-Side Battle
| Feature | Otto Cycle | Diesel Cycle |
|---|---|---|
| How it starts fire | Spark plug ⚡ | Hot compressed air 🔥 |
| Fuel type | Gasoline | Diesel |
| Squeeze ratio | 8:1 to 12:1 | 15:1 to 22:1 |
| Efficiency | ~25-30% | ~35-45% |
| Engine speed | Fast (high RPM) | Slower (low RPM) |
| Torque (pulling power) | Lower | Higher |
| Best for | Cars, bikes | Trucks, buses |
| Cost of fuel | More expensive | Usually cheaper |
| Engine weight | Lighter | Heavier |
| Noise level | Quiet 🤫 | Loud 📢 |
🎯 Efficiency: Who Uses Fuel Better?
Diesel wins! Here’s why:
- Higher compression = More energy squeezed out
- No throttle losses = Less wasted energy
- Burns fuel more completely = Less waste
Simple math:
- Otto uses 100 units of fuel → Gets 25-30 units of work
- Diesel uses 100 units of fuel → Gets 35-45 units of work
That’s like getting more pizza for the same money! 🍕
🔊 Why is Diesel So Loud?
When diesel fuel suddenly catches fire in super-hot air, it makes a mini-explosion all at once. This creates the famous “knock knock” sound!
Otto engines burn fuel more smoothly, like a gentle wave instead of a sudden bang.
💪 Why Do Trucks Use Diesel?
Diesel engines produce more torque (twisting power).
Think of torque like this:
- Otto = A fast runner 🏃 (goes fast but can’t carry much)
- Diesel = A strong elephant 🐘 (slower but can pull heavy things)
That’s why:
- Cars use Otto (need speed)
- Trucks use Diesel (need pulling power)
🌍 Real World Examples
Otto Cycle in Action:
- 🏎️ Race cars (Formula 1)
- 🚗 Family sedans
- 🏍️ Motorcycles
- ✂️ Lawnmowers
- 🛵 Scooters
Diesel Cycle in Action:
- 🚛 Semi-trucks
- 🚌 City buses
- 🚂 Trains
- 🚢 Ships
- 🚜 Tractors
🧪 The Science Bit (For Curious Minds!)
Compression Ratio Explained
Imagine you have a box that can shrink:
Otto: Shrinks from 10 boxes to 1 box (10:1) Diesel: Shrinks from 20 boxes to 1 box (20:1)
The more you shrink, the hotter it gets!
Why Higher Compression = More Efficiency
When you squeeze more:
- Temperature rises more
- More energy gets released
- More push on the piston
- More work done!
✨ Key Takeaways
- Otto Cycle = Spark ignition, gasoline, cars
- Diesel Cycle = Compression ignition, diesel fuel, trucks
- Otto = Faster, quieter, lighter
- Diesel = Stronger, more efficient, louder
- Both are amazing at what they do!
🎬 The Movie Version
Think of it like choosing a superhero:
🦸 Otto-Man: Fast, nimble, works great in cities. Perfect for quick getaways!
🦸 Diesel-Woman: Super strong, never gets tired, can pull anything. Perfect for heavy lifting!
Neither is better. They’re just different tools for different jobs!
🚀 Fun Fact to Impress Your Friends!
Rudolf Diesel’s original engine ran on peanut oil! He believed engines should run on plant oils to help farmers. Today, we call this biodiesel, and it’s making a comeback! 🥜
🎯 Remember This Forever!
Otto = SPARK ⚡ (like lighting a match) Diesel = SQUEEZE 💪 (like starting a fire by rubbing sticks)
Both turn heat into motion. Both changed the world. And now YOU understand how they work!
🎉 Congratulations! You’re now a Heat Engine Expert! 🎉
