Refrigerators and Heat Pumps

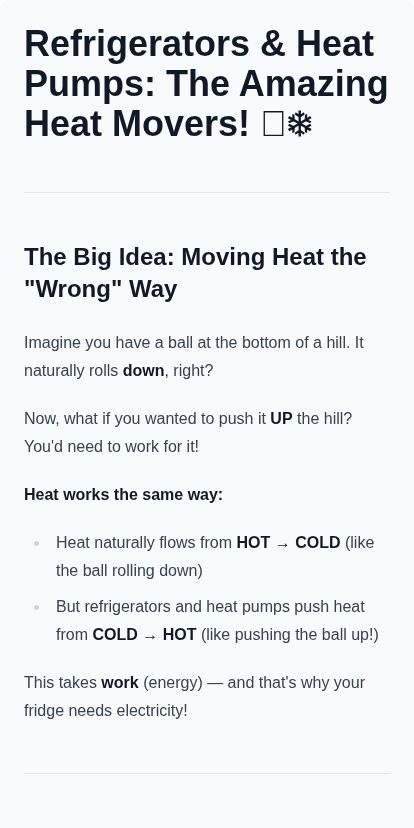

Refrigerators & Heat Pumps: The Amazing Heat Movers! 🧊❄️

The Big Idea: Moving Heat the “Wrong” Way

Imagine you have a ball at the bottom of a hill. It naturally rolls down, right?

Now, what if you wanted to push it UP the hill? You’d need to work for it!

Heat works the same way:

• Heat naturally flows from HOT → COLD (like the ball rolling down)
• But refrigerators and heat pumps push heat from COLD → HOT (like pushing the ball up!)

This takes work (energy) — and that’s why your fridge needs electricity!

1. The Refrigerator Concept

What is a Refrigerator?

A refrigerator is a heat thief — it steals heat from inside (where your food is) and throws it outside (into your kitchen).

graph TD
    A["🧊 Cold Inside<br>Your Food"] -->|Heat Stolen| B["🔧 Refrigerator<br>Does Work"]
    B -->|Heat Dumped| C["🔥 Warm Kitchen<br>Back of Fridge"]
    D["⚡ Electricity"] --> B

Simple Story

Picture a bucket brigade:

1. Inside your fridge = a cold room where food lives
2. The refrigerator’s job = workers passing buckets of “heat” OUT of the cold room
3. Your kitchen = where all that heat gets dumped (that’s why the back of your fridge feels warm!)

Real Example

You put warm juice in the fridge:

• The fridge absorbs heat from the juice (juice gets cold)
• That heat travels through coils
• Heat releases at the back of the fridge (coils feel warm)
• Juice is now cold, kitchen is slightly warmer!

2. Coefficient of Performance (COP) — Refrigerator

What Does COP Mean?

COP tells us: “How good is this refrigerator at its job?”

Think of it like this:

• You pay for electricity (that’s your work input)
• You get cooling (that’s your benefit)
• COP = How much cooling you get for each unit of electricity you pay

The Formula

$COP_{refrigerator} = \frac{Q_L}{W}$

Where:

• Q_L = Heat removed from the cold space (what you want!)
• W = Work (electricity) you put in (what you pay!)

Making It Simple

Higher COP = Better refrigerator! (More cooling for your money)

Real Example

Your fridge uses 100 Joules of electricity and removes 300 Joules of heat from inside.

$COP = \frac{300}{100} = 3$

This means: For every 1 unit of electricity, you get 3 units of cooling. Pretty good deal!

3. The Heat Pump Concept

What is a Heat Pump?

A heat pump is the refrigerator’s twin brother — but with a different goal!

• Refrigerator = “I want to keep the inside COLD” (focuses on removing heat)
• Heat Pump = “I want to keep the inside WARM” (focuses on adding heat)

graph TD
    A["🌳 Cold Outside<br>Winter Air"] -->|Heat Stolen| B["🔧 Heat Pump<br>Does Work"]
    B -->|Heat Delivered| C["🏠 Warm House<br>Your Living Room"]
    D["⚡ Electricity"] --> B

Simple Story

It’s winter. Your house is cold. Instead of burning fuel:

1. Heat pump steals heat from the cold outside air (yes, even cold air has some heat!)
2. Pumps that heat into your warm house
3. Your house gets toasty!

It’s like stealing warmth from winter itself!

Real Example

Even when it’s 5°C outside, a heat pump can:

• Grab heat from the outdoor air
• Concentrate and boost it
• Pump 25°C warmth into your home

Magic? No, just clever thermodynamics!

4. COP of Heat Pump

The Goal is Different!

For a heat pump, you care about how much heat you DELIVER to the warm space.

The Formula

$COP_{heat pump} = \frac{Q_H}{W}$

Where:

• Q_H = Heat delivered to the warm space (what you want!)
• W = Work (electricity) you put in (what you pay!)

The Secret Connection

Here’s something beautiful:

$COP_{heat pump} = COP_{refrigerator} + 1$

Why? Because the heat pump delivers:

• The heat it stole from outside (Q_L)
• PLUS the work energy it used (W)

All of it becomes heat in your home!

Real Example

A heat pump uses 100 Joules of electricity and delivers 400 Joules of heat to your home.

$COP_{heat pump} = \frac{400}{100} = 4$

You paid for 100, you got 400 worth of heating. That’s 4x return!

If this were a refrigerator instead: $COP_{refrigerator} = 4 - 1 = 3$

5. The Carnot Refrigerator: The Perfect Dream Machine

What is a Carnot Refrigerator?

Imagine the BEST possible refrigerator that could ever exist. No friction. No losses. Perfect in every way.

That’s the Carnot Refrigerator — a theoretical ideal we use as our gold standard.

The Carnot COP Formulas

For a Carnot Refrigerator:

$COP_{Carnot, ref} = \frac{T_L}{T_H - T_L}$

For a Carnot Heat Pump:

$COP_{Carnot, HP} = \frac{T_H}{T_H - T_L}$

Where:

• T_H = Temperature of hot reservoir (in Kelvin!)
• T_L = Temperature of cold reservoir (in Kelvin!)

Why Kelvin Matters!

Always use Kelvin (K) for these formulas!

• To convert: K = °C + 273
• 0°C = 273 K
• 25°C = 298 K

Real Example

Problem: A Carnot refrigerator operates between:

• Cold inside: 5°C = 278 K (your fridge)
• Warm outside: 25°C = 298 K (your kitchen)

Carnot COP for refrigerator:

$COP = \frac{278}{298 - 278} = \frac{278}{20} = 13.9$

This is the maximum possible COP! Real fridges get around 3-5.

Carnot COP for heat pump (same temperatures):

$COP = \frac{298}{298 - 278} = \frac{298}{20} = 14.9$

Notice: COP_HP = COP_ref + 1 (14.9 = 13.9 + 1) ✓

Quick Comparison Chart

The Golden Rules

1. Heat doesn’t flow uphill for free — You need work (electricity)!

2. COP > 1 is normal — You get MORE heat transfer than the work you put in

3. Carnot is the dream — Real machines can never beat Carnot COP

4. Temperature difference matters — Smaller gap = Higher COP

5. Always use Kelvin — For Carnot calculations, never Celsius!

You’ve Got This!

You now understand:

• ✅ How refrigerators steal heat from cold places
• ✅ How heat pumps warm your home efficiently
• ✅ What COP means and how to calculate it
• ✅ The difference between refrigerator and heat pump COP
• ✅ The Carnot ideal and why it’s unbeatable

Remember: These machines don’t create or destroy heat — they just move it where we want it!

Keep learning, keep exploring. You’re mastering thermodynamics! 🚀
